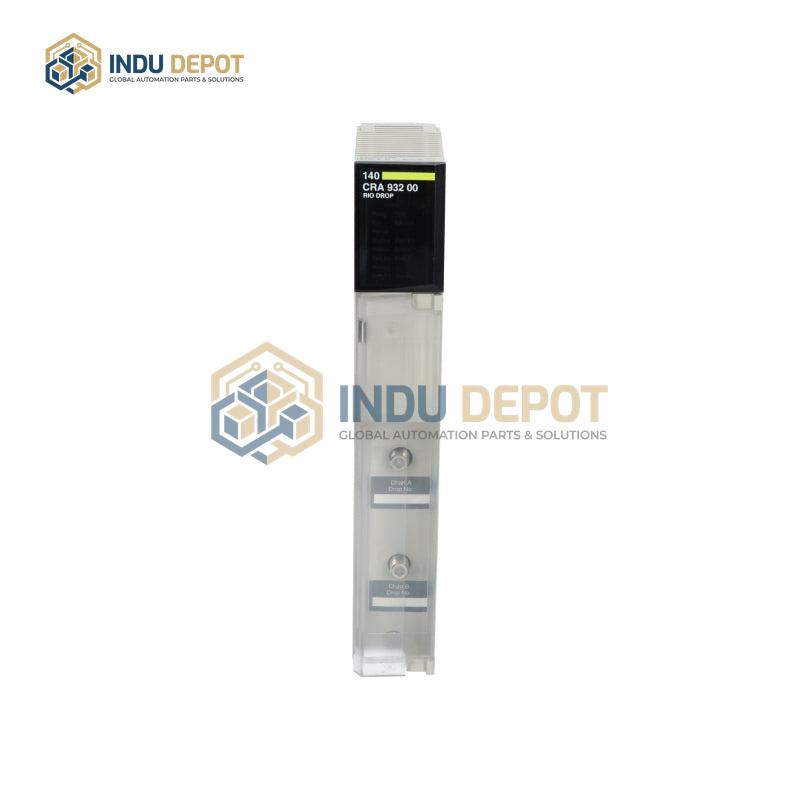

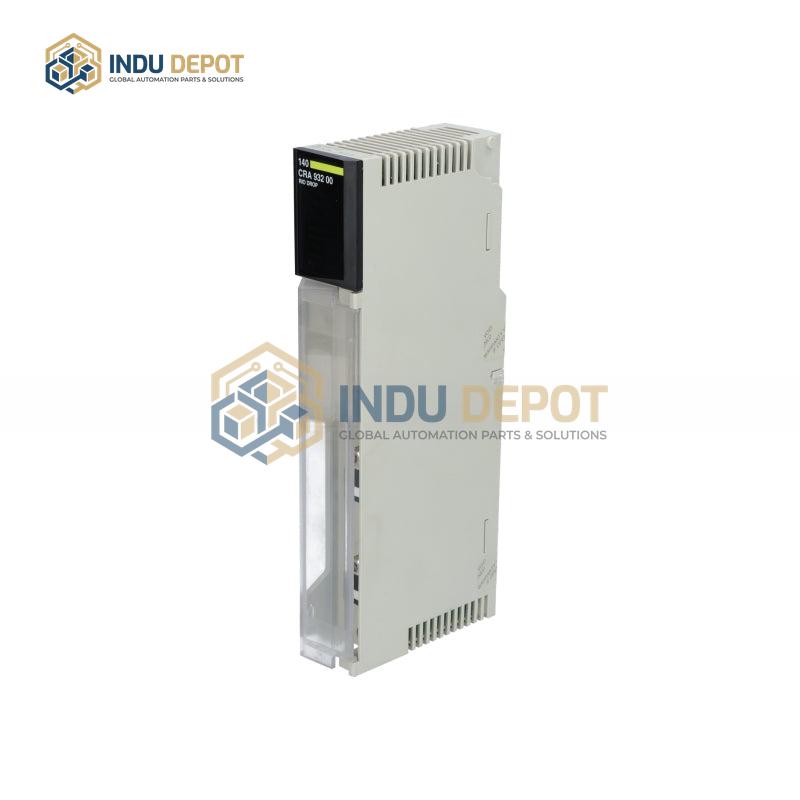

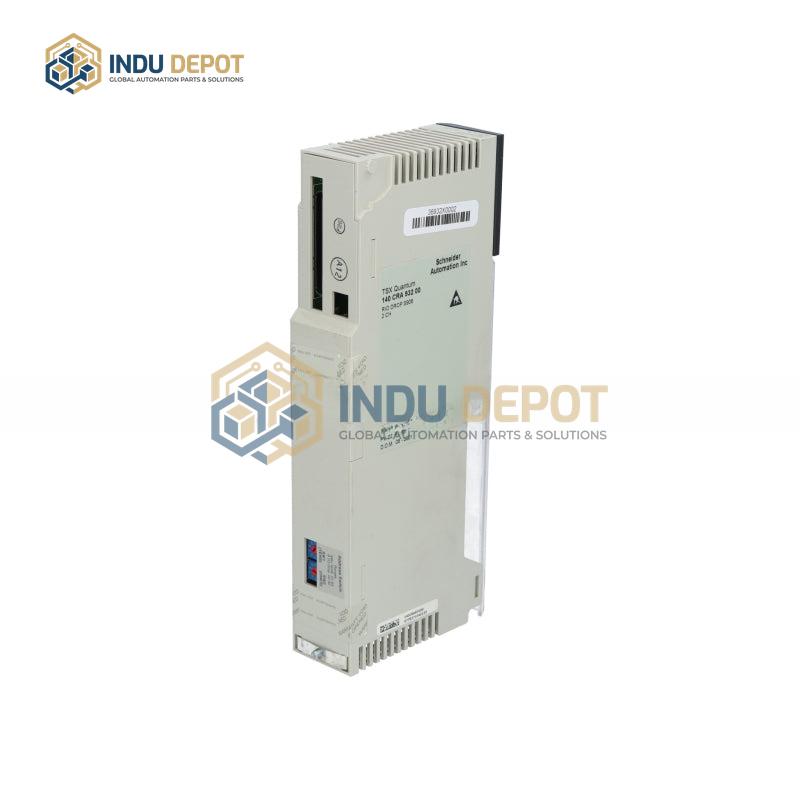

Schneider 140CRA93200 Modicon RIO Drop Adapter Module

Description

The Schneider 140CRA93200 Modicon RIO Drop Adapter Module is a dual-channel remote I/O head module from the Modicon Quantum series, designed for industrial automation systems. Installed on the same backplane as a control CPU module, it enables bidirectional data transmission between PCU modules on different backplanes and RIO drop modules, handling both digital and analog signals to support production process monitoring, control, data collection, and communication. Key technical specifications include a 750mA bus current requirement, typical power consumption of 3W, support for 1mA CRP, and up to 31 branches. It offers 64 in words per drop and 64 out words per drop, with 2 ports per branch and a maximum capacity of 32 ports (16 branches); it requires AS-P892-000, AS-J892-101/102, or AS-J290-0X0 at RIO branch points. The module is compatible with Quantum 200, 500, 800 series, or SY/MAX in any combination, and is suitable for applications including process control monitoring, mechanical control, automated production lines, and energy facility management, connecting sensors, actuators, and other control devices.
