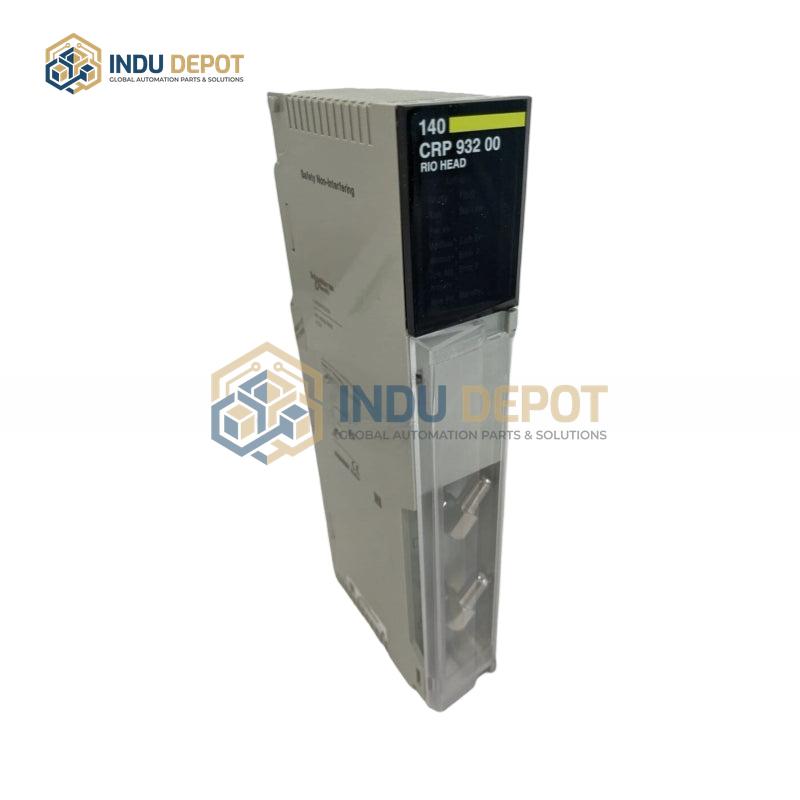

Schneider 140CRP93200 RIO Head-end Adaptor Module

Description

The Schneider 140CRP93200 RIO Head-end Adaptor Module is a dedicated component for the Modicon Quantum series PLC (compatible with Symax), designed to expand PLC I/O capabilities and enable reliable communication with remote I/O sites. Key features include high performance, modular design, redundant hot-swap functionality, and DIN-standard mounting for easy installation and maintenance. It supports Modbus TCP/IP protocol via 1 RJ45 Ethernet port and 2 Modicon RIO head-end ports, connecting to RIO bus systems for distributed device integration.

Technical specifications include a 24 V DC ±20% power supply with typical power consumption of 4.5W (range 3W-5W), and it operates in temperatures from -25 degrees Celsius to 70 degrees Celsius, with storage temperatures from -40 degrees Celsius to 85 degrees Celsius. It has an IP20 protection rating, withstands 0.5g vibration (10 to 500Hz) and 5g shock (11ms), and handles 5% to 95% non-condensing relative humidity. With a compact footprint (variations include 140 mm × 126 mm × 58 mm, 115mm x 48mm x 150mm, and 190x143x33mm) and 800g weight, it fits seamlessly into industrial control cabinets. Ideal for demanding industrial automation, process control, discrete manufacturing, and power utility applications requiring stable, redundant system performance.
