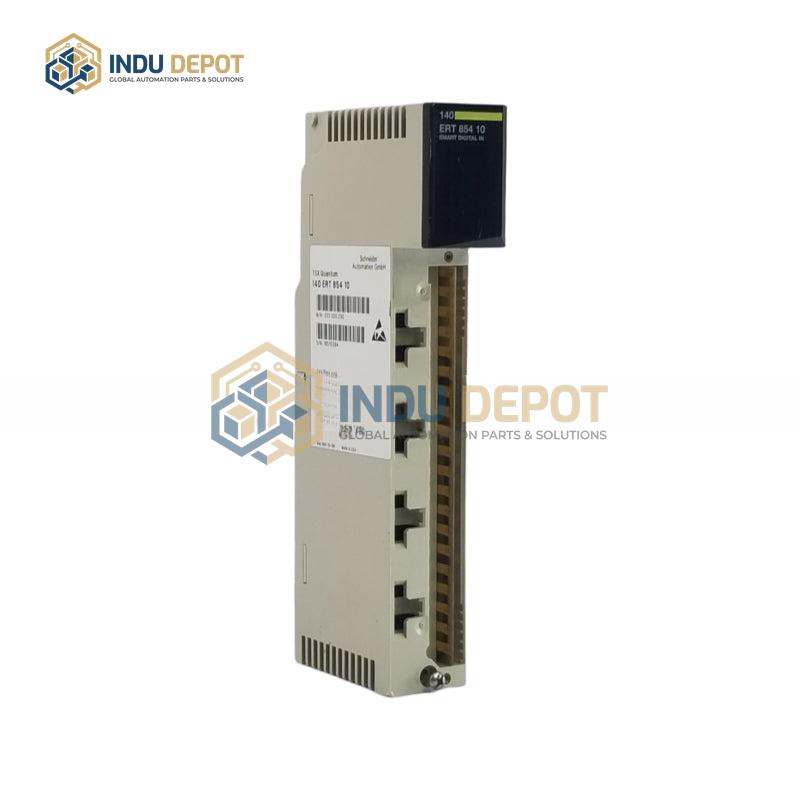

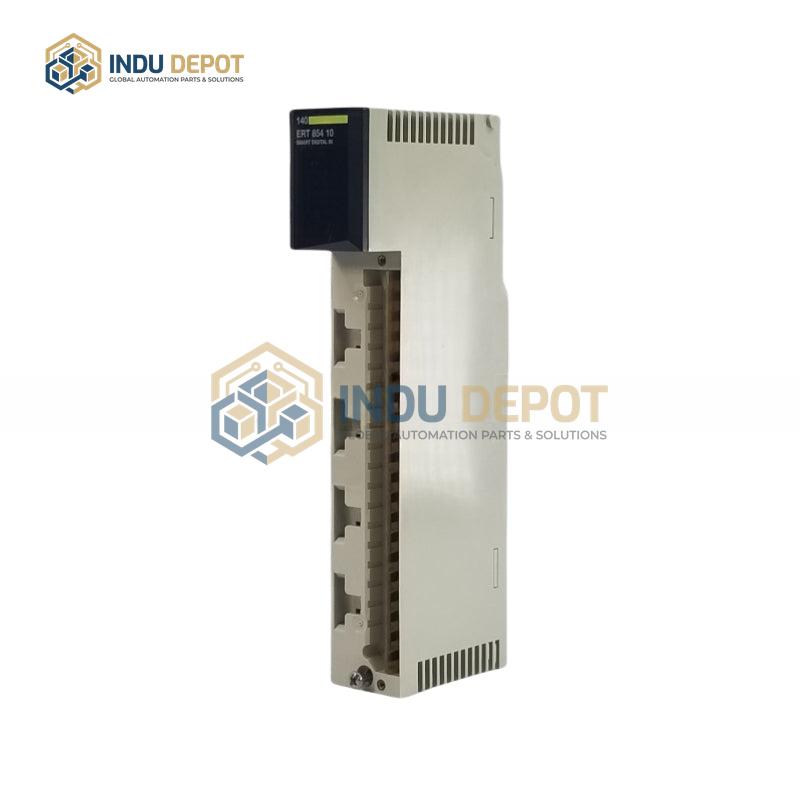

Schneider 140ERT85410Z Modicon Digital Input Module

Description

The Schneider 140ERT85410Z Modicon Digital Input Module is a high-performance, multi-function input unit belonging to the Modicon Quantum series, designed for industrial automation control systems. As a 32-channel multi-function input module, it integrates digital, analog, and temperature input capabilities, enabling high-precision collection of continuous physical quantities such as temperature, pressure, and flow signals, including thermocouple outputs and 4-20mA signals. It supports compatibility with multiple industrial communication protocols, including Modbus TCP/IP, Profibus DP, and Ethernet/IP, and provides functions like logic control, process monitoring, and distributed scheduling to meet diverse industrial data acquisition and control needs.

Physically, the module measures approximately 155mm × 110mm × 40mm, weighs around 0.3kg, features DIN rail mounting, and has an IP20 protection rating, requiring installation inside a control cabinet. Its input characteristics include 32 discrete input channels that accept voltage signals ranging from 24V to 125V, adapting to various industrial field signal sources, plus 1 dedicated 24V clock signal input for synchronization or trigger operations. Operating at 24V DC with 4 relay outputs, it has a working temperature range of -20 degrees Celsius to 60 degrees Celsius. Ideal for high-precision acquisition scenarios, it is widely applied in chemical, pharmaceutical, energy, metallurgy, and rail transit industries, such as reactor control, semiconductor cleaning, and power monitoring.
