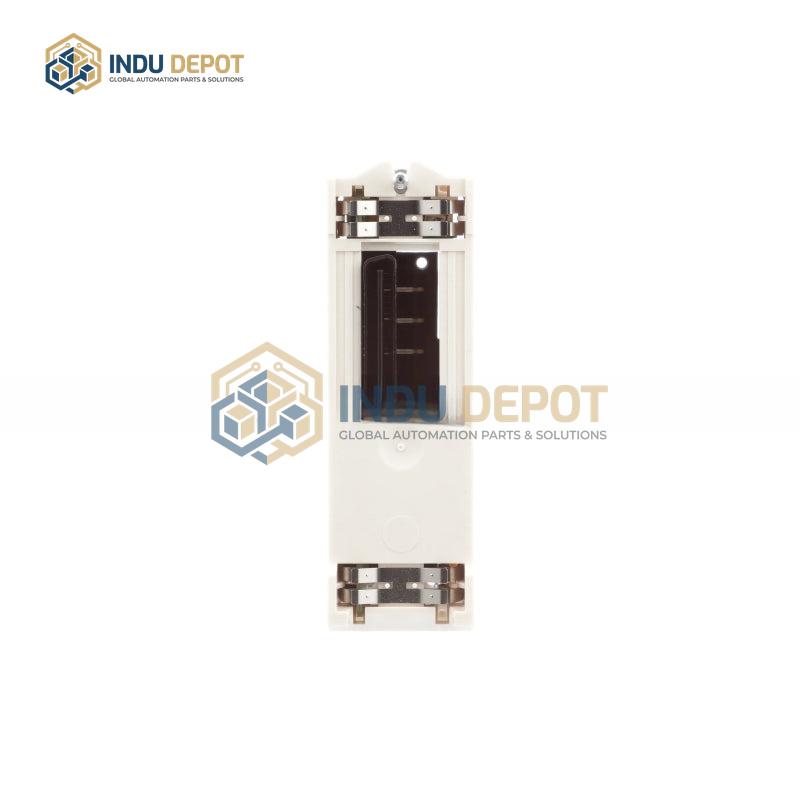

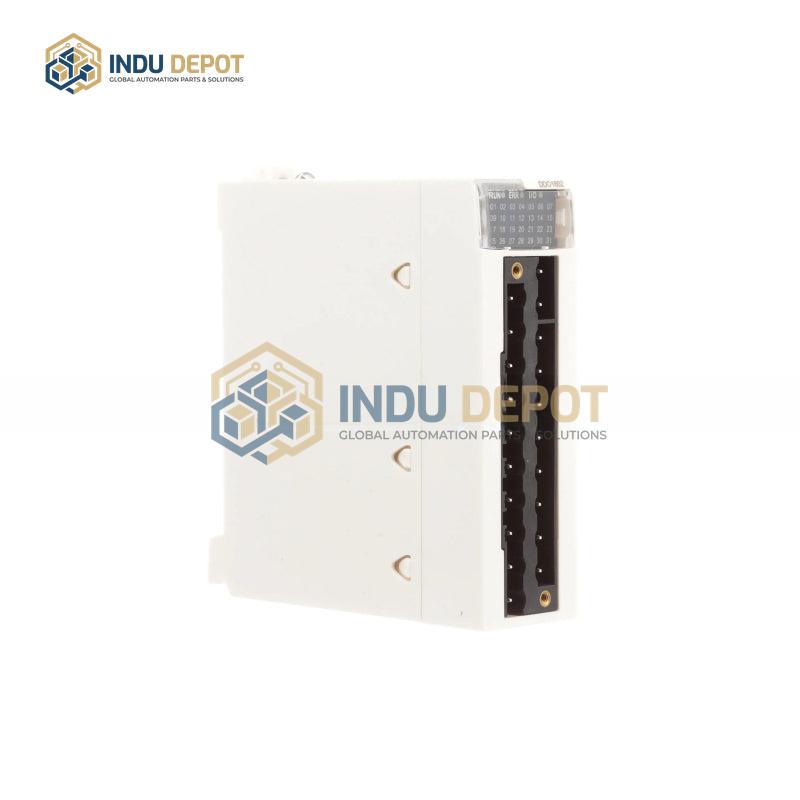

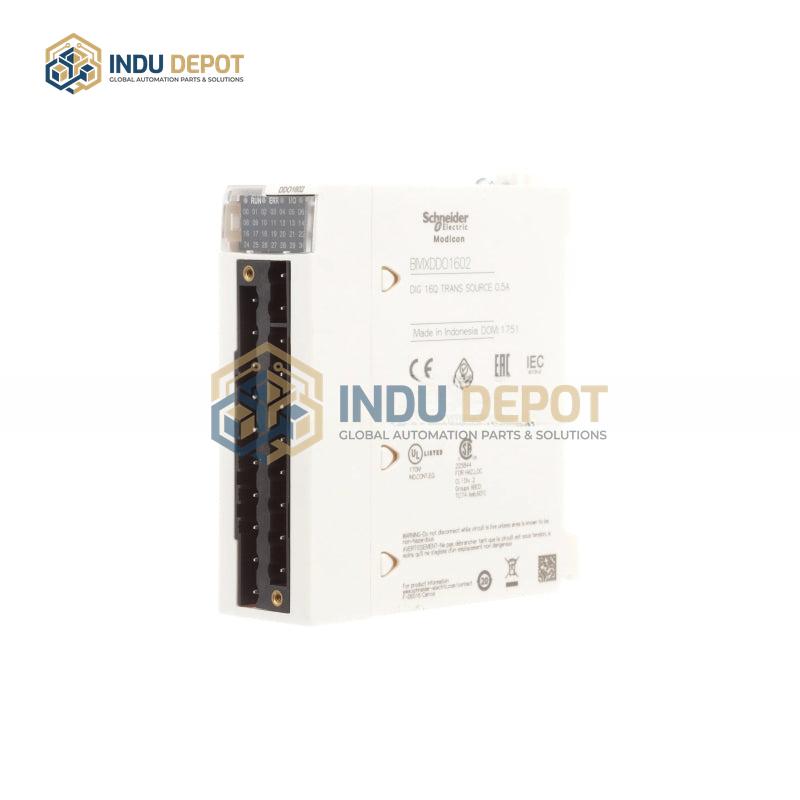

Schneider BMXDDO1602 Discrete Output Module

Description

The Schneider BMXDDO1602 is a discrete DC output module belonging to the Schneider M580 (BMX series) PLC module line. It features 16 channels of digital DC output, with each channel utilizing a 24VDC transistor for source-type output, delivering a maximum current of 0.5A per channel. Key functional highlights include built-in per-channel diagnostics and protection capabilities, which help prevent damage and enable quick fault identification for reliable operation. The module connects via a 20-point terminal block, ensuring secure and straightforward integration into control systems. It operates at a 24V working voltage and supports an output frequency range of 50-60kHz. The module holds CCC product certification and is designed for use in industrial automation applications that require precise, high-density discrete DC output control, such as manufacturing lines, material handling systems, and process automation setups. Note that there are two cosmetic variants (light and dark housing) with identical technical specifications.
