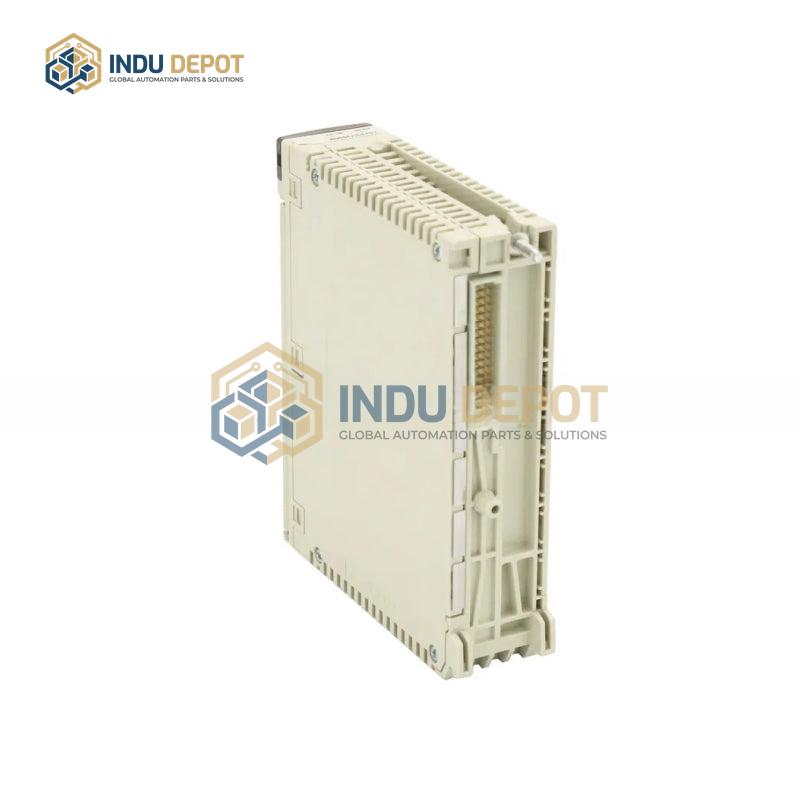

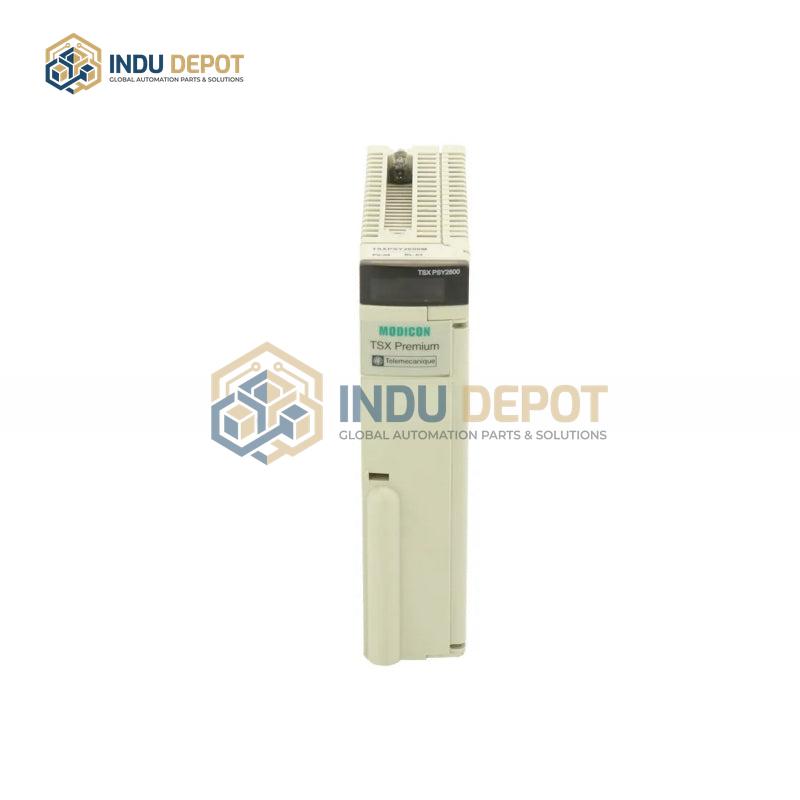

Schneider TSXPSY2600M Modicon Power Supply Module

Description

The Schneider TSXPSY2600M Modicon Power Supply Module is a core component of the Modicon Premium Series Programmable Logic Controller (PLC) system, designed to deliver stable, reliable DC power to Modicon Premium CPUs and extended I/O racks, serving as a critical element for continuous, safe operation of automated control systems. It is widely applied in industrial automation sectors including water treatment, energy, manufacturing, and transportation. As an AC-powered supply module, it features a global universal input voltage range of 100–240 V AC with a frequency range of 47–63 Hz, and provides a 24 V DC output with a maximum output current of 2.5 A, making it suitable for medium-sized control station configurations. The module has a modular installation design, with package dimensions of 23mm × 100mm × 120mm and a weight of approximately 0.4 kg. It supports 24 inputs/16 outputs, has a program capacity of 32 kbyte, runs on firmware version V2.2.0, and carries the product type identifier CPUST30DC/DC/DC, ensuring compatibility and reliable power delivery for connected PLC components.
