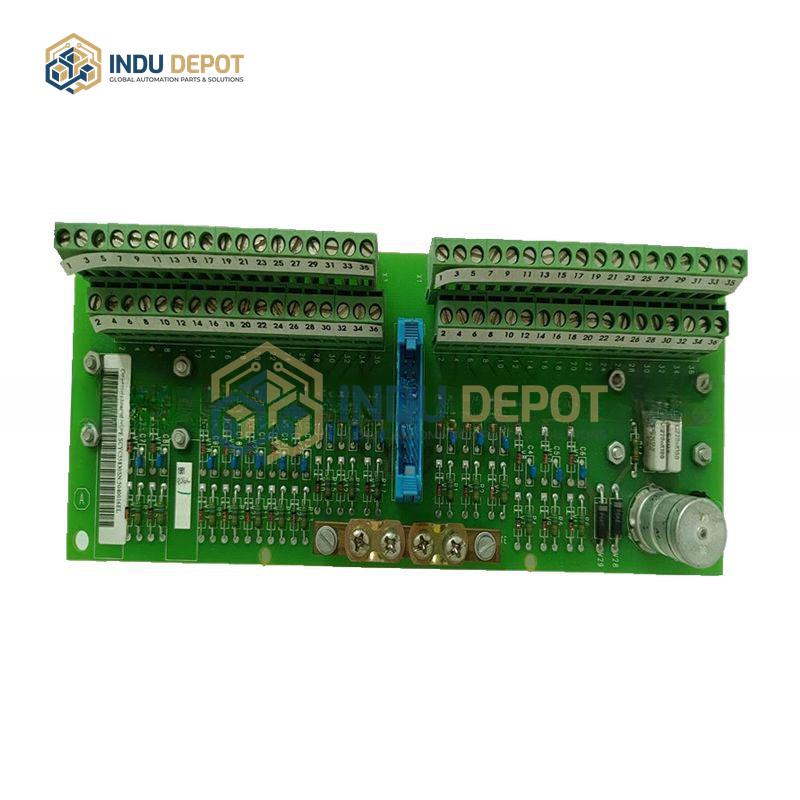

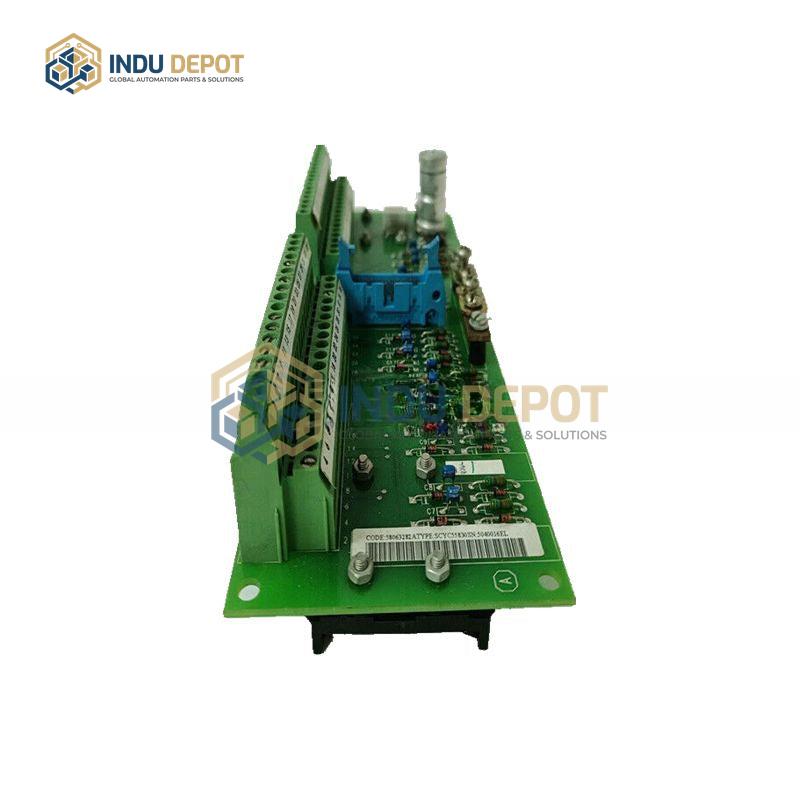

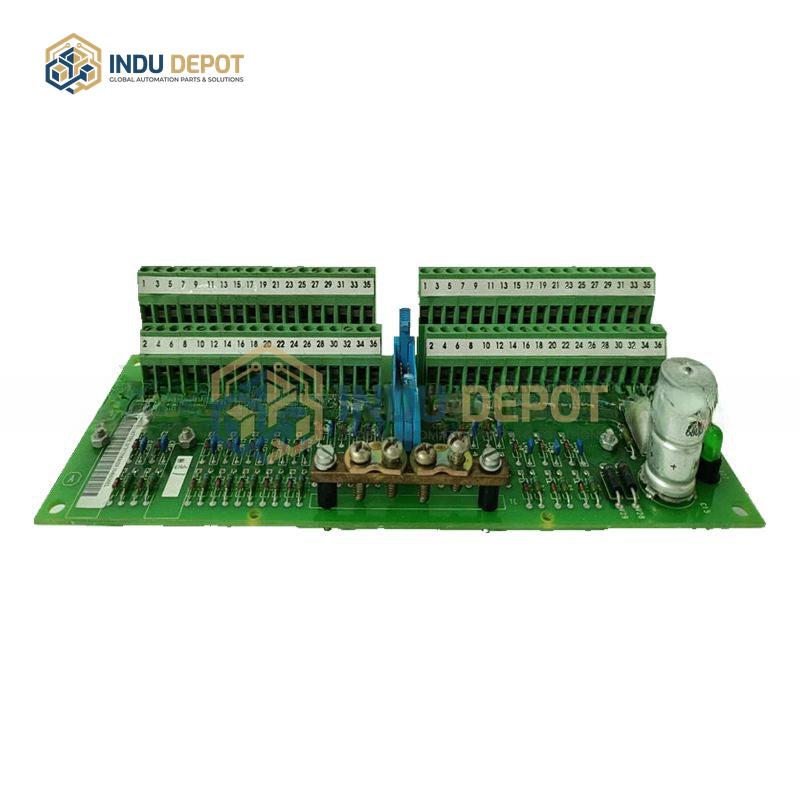

SCYC55830 ABB Industrial Trigger Plate
Description
ABB SCYC55830 Industrial Trigger Plate (Digital Input Module) is a compact, industrial-grade programmable logic controller (PLC) expansion module designed for harsh industrial environments, serving as a critical bridge between field sensors and control systems.
| Specification | Value |
|---|---|
| Product Type | PLC Expansion Module |
| Input Channels | 8 digital inputs (expandable to 16) |
| Output Channels | 4 digital outputs (optional) |
| Operating Voltage | DC 24V (compatible with 120V AC) |
| Single Channel Max Current | ≤100mA |
| Response Time | ≤2ms (typical) |
| Operating Temperature | -20 to 60 degrees Celsius |
| Protection Rating | IP20 (standard) / IP54 (protective version) |
| Dimensions | 167mm x 94mm x 67mm |
Key Features:
- Uses industrial-grade components and three-proof coating (moisture, dust, corrosion resistance), with EMC Level 3 certification for high reliability
- Supports independent configuration of 8 input channels, compatible with NPN/PNP sensor signals, and software-adjustable input filtering time (0.1ms to 10ms)
- Equipped with front-panel LED status indicators for real-time monitoring of power, communication, and channel status, enabling fast fault diagnosis
- Supports multiple communication protocols including Modbus RTU/TCP and optional Profibus-DP
Applications:
- Metallurgical plants for production line data collection and control
- Water treatment plants for sensor signal integration and equipment control
- General industrial automation systems for distributed I/O expansion
