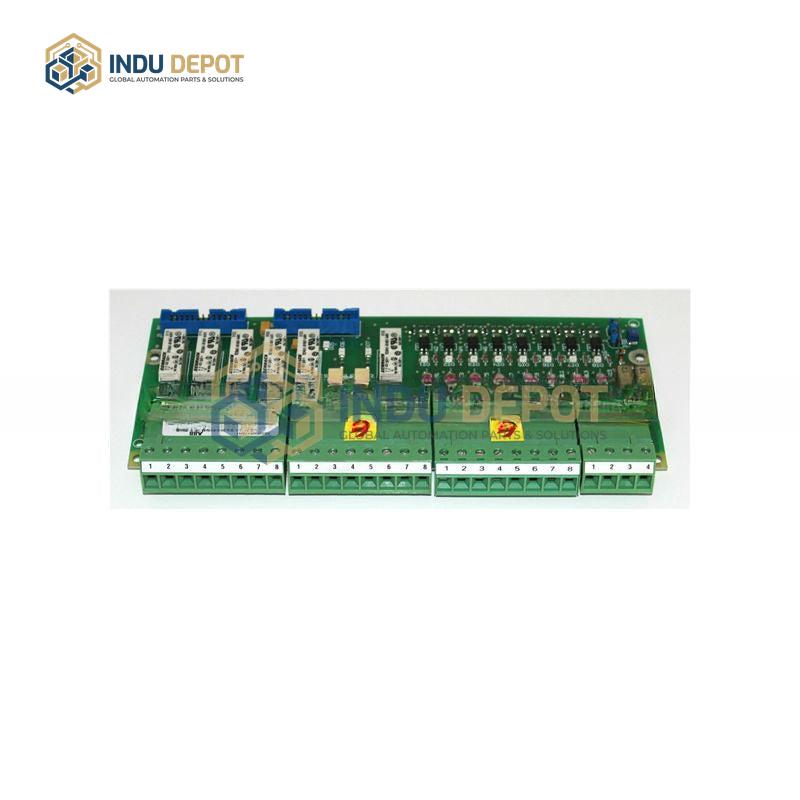

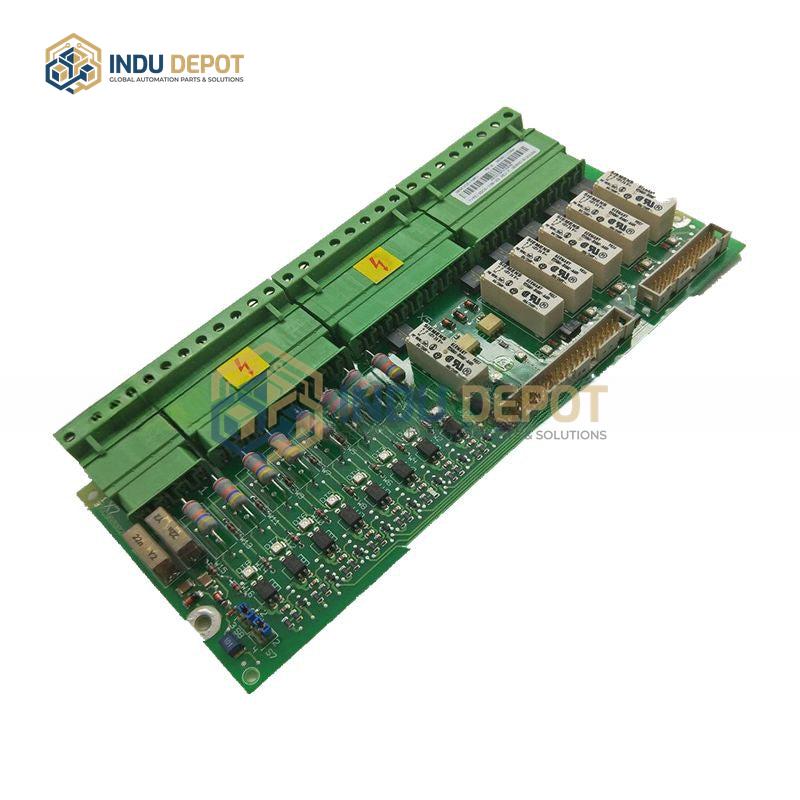

SDCS-IOB-23 ABB Series Power Converter Module
Description
SDCS-IOB-23 ABB Series Power Converter Module is a digital input/output (I/O) expansion module designed for industrial AC speed drive systems, used to enhance the local signal interaction capability of main control units.
| Specification | Value |
|---|---|
| Input Channels | 16 channels, 24V DC signal support |
| Output Channels | 8 channels, high-speed opto-isolated transistor or relay |
| Measurement Range | 0 to 60V DC |
| Continuous Rated Output Current | 0.75A per channel, 6A per power group |
| Operating Temperature | 0 to 60 degrees Celsius |
| Protection Rating | IP30 or higher (customizable) |
| Net Weight | 0.351 kilograms |
Key Features:
- Communicates via dedicated high-speed backplane bus or fiber optic link for low-latency, interference-resistant data transmission
- Industrial-grade components and manufacturing processes ensure long-term stability and durability
- Compact design for easy integration and replacement, with intuitive indicator lights and diagnostic interfaces for quick troubleshooting
- Multiple protection mechanisms including anti-electromagnetic interference and short-circuit prevention
Applications:
- High-power drive systems such as rolling mills, hoists, ship propulsion, fans, and water pumps
- Industrial automation production lines for connecting sensors, actuators, and PLC devices
- Safety interlock control, status monitoring, and alarm systems in industrial environments
- Power plant DCS monitoring systems and intelligent flat tempering furnace systems
