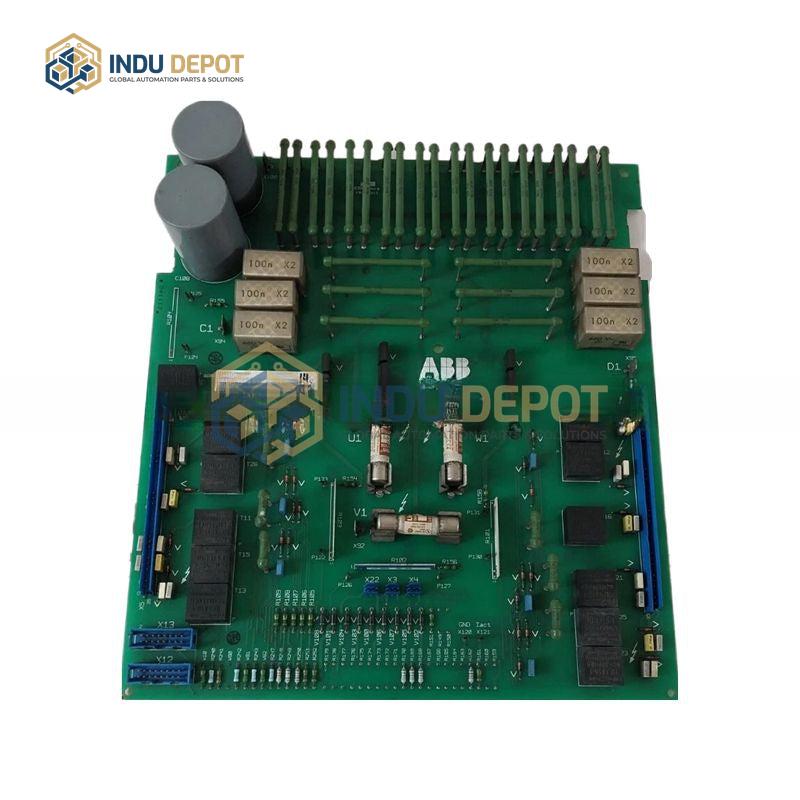

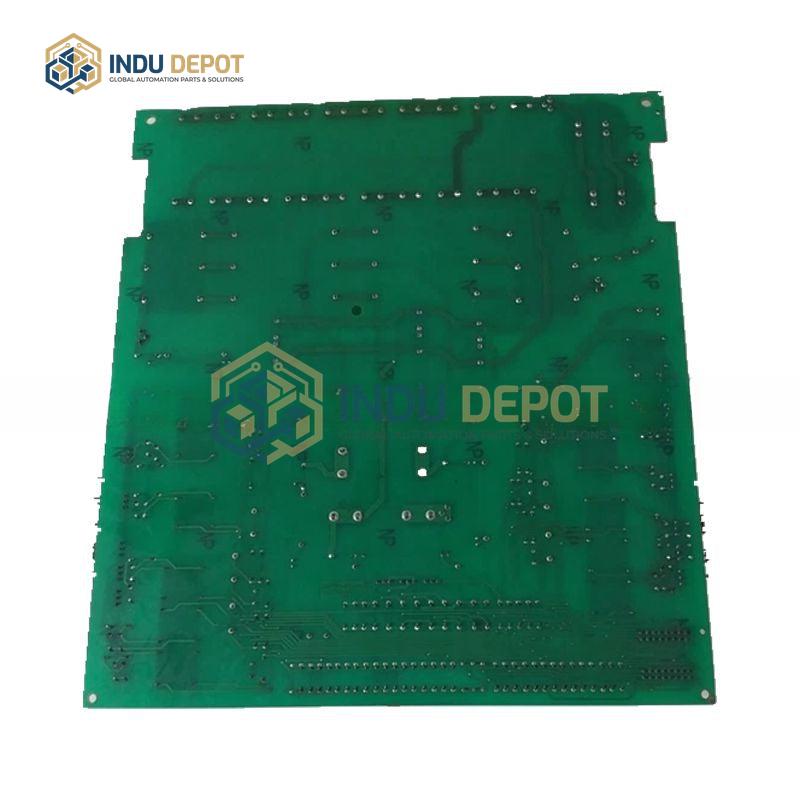

SDCS-PIN-205B ABB Drive Board for Power Converter Systems
Description
SDCS-PIN-205B is an interface drive board from ABB, designed for use with UNITROL series excitation systems such as UNITROL 1000, 5000, and 6000. It serves as a key component for signal processing, power management, and system communication in power converter and generator excitation setups.
| Specification | Value |
|---|---|
| Input Voltage Range | 85VAC to 265VAC, 18VDC to 36VDC (compatible with 24VDC industrial standard) |
| Output Voltage | 24VDC (stable) |
| Single Channel Output Current | 4A, supports multi-channel parallel expansion |
| Sampling Frequency | 30kHz |
| Response Time for Power Protection | 10 microseconds |
| Protection Rating | IP20 |
| Dimensions | 115x65x23mm |
Key Features:
- High-reliability power supply with multi-voltage support, efficient conversion, and comprehensive protection including overcurrent, overvoltage, undervoltage, and short circuit protection
- Precise signal processing with support for analog/digital I/O, integrated PID and fuzzy control algorithms, and 30kHz high-speed sampling
- Flexible communication with standard RS-232, RS-485 interfaces, and optional support for CANopen, Modbus RTU protocols
- Compact modular design with IP20 protection, wide operating temperature range, and built-in diagnostic circuits for real-time fault detection
Applications:
- Generator excitation systems in hydro, thermal, nuclear, and gas-fired power plants
- Industrial automation power converter systems
- Large industrial synchronous motor control setups
Related Models:
- SDCS-PIN-205B-COAT
- SDCS-PIN-48
- SDCS-PIN-48-COAT
