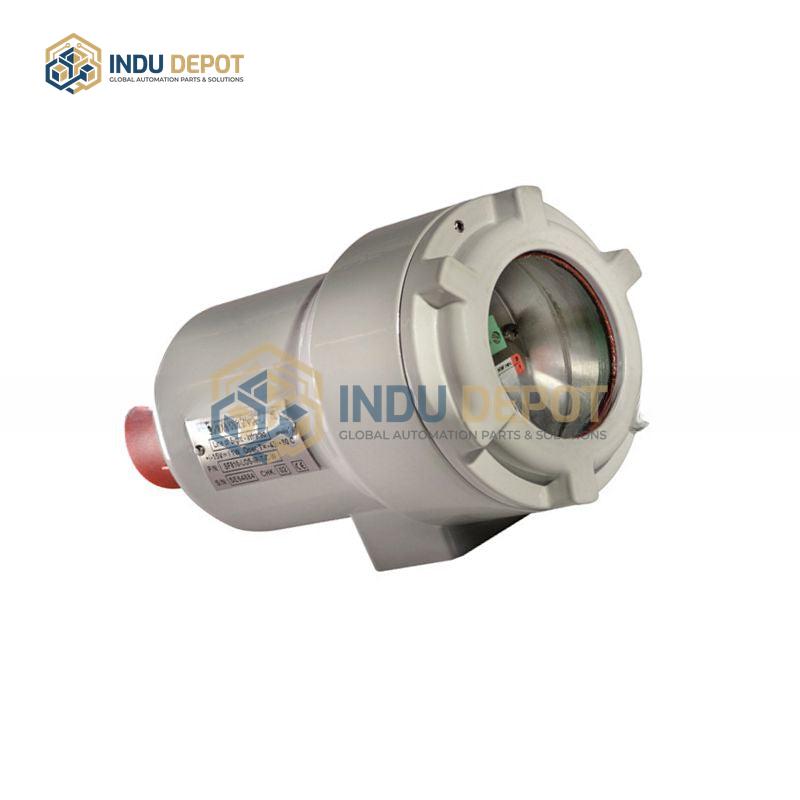

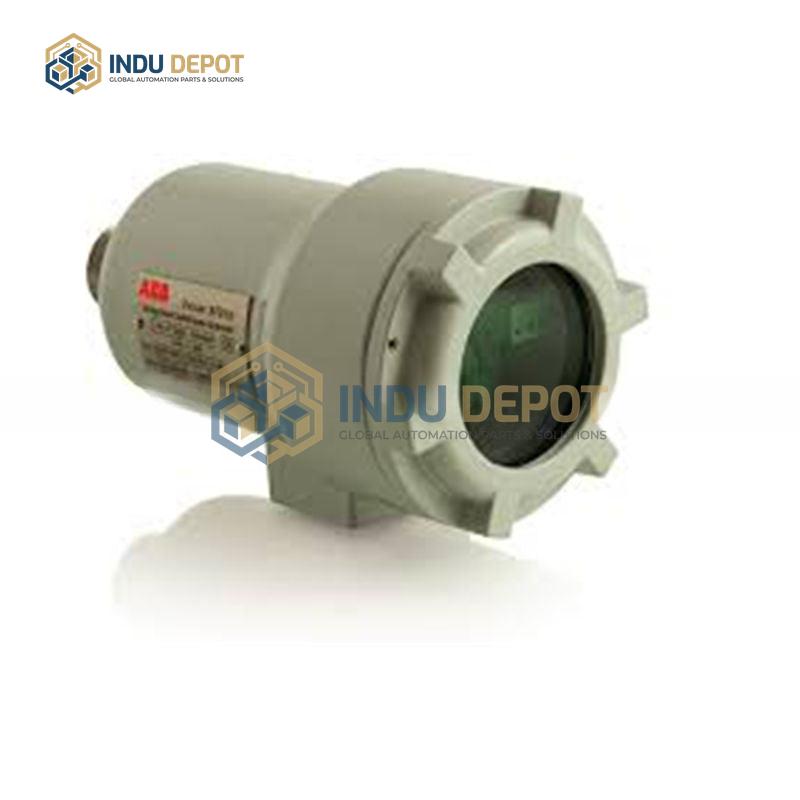

SF810INT-FOC-UV-T-L ABB Flame detection probe
Description
SF810INT-FOC-UV-T-L ABB Flame Detection Probe is an industrial flame scanning device from ABB’s Uvisor SF810i series, designed for reliable flame presence detection and safety monitoring in combustion systems. No direct specifications were found for this model, so below is technical information based on related SF810i series flame detectors, with core attributes aligned to UV-based flame scanning probes.
| Specification | Value |
|---|---|
| Sensor Type | UV (Ultraviolet) Solid-State Sensor |
| Power Supply | 12V/24V DC (configurable by application) |
| Protection Rating | IP66/IP67 |
| Operating Temperature | -40 to 70 degrees Celsius |
| Signal Output | Relay, 4-20mA analog, Modbus RTU via RS-485 |
Key Features:
- Continuous self-test function to monitor sensor and system reliability
- F-FFRT (Fast Flame Fault Response Time) for rapid detection of flame anomalies
- Auto-tuning capability to adapt to environmental changes and optimize detection accuracy
- Isolated digital inputs for remote parameter adjustment and configuration
- Multi-fuel compatibility for use with gas, oil, and other common combustion fuels
Applications:
- Marine diesel generator set flame monitoring and safety protection
- Industrial boiler and burner flame detection for gas or light oil fuels
- Power plant combustion system safety monitoring
Related Models:
- SF810INT-LOS-UV-T-L
- SF810INT-LOS-UVIR-T-L
- SF810INT-LOS-UV-T
- SF810-FOC-IR
