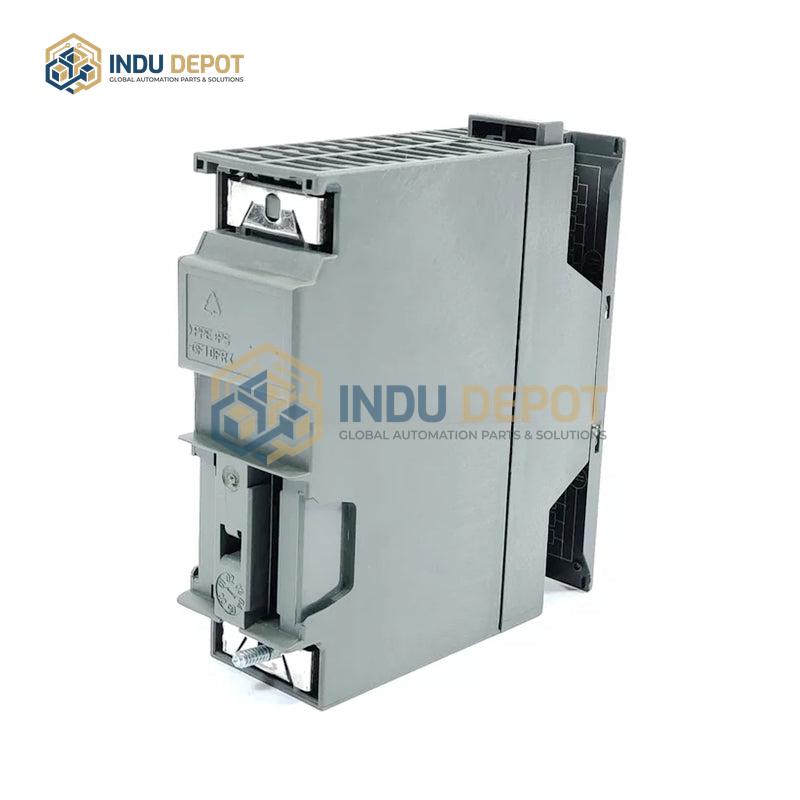

Siemens 6ES7322-1BH01-0AA0 Digital Output

Description

The Siemens 6ES7322-1BH01-0AA0 is a digital output module belonging to the SIMATIC S7-300 series, designed to expand the digital output capability of PLC systems. Its core function is to convert internal electrical signals into digital signals recognizable by external actuators, enabling precise control of industrial equipment. Featuring a modular design, it can be mounted on standard DIN rails, supporting control room installation layouts for efficient use of cabinet space.

Key technical specifications include 16 digital output points, a 24V operating voltage, and CCC product certification. It operates in an environment with a temperature range of -40 to 70 degrees Celsius and normal humidity, with a weight of 0.5 kg and compact dimensions. As part of the SM322 digital output lineup, it offers potential isolation for reliable signal transmission, with a total output current capacity of 8A per module and 4A per group, and includes short-circuit protection to prevent damage from abnormal loads.

This module integrates seamlessly with S7-300 series automation systems, supporting automatic address assignment via installation slots. It is ideal for use in industrial automation scenarios such as production lines, mechanical equipment control, and process automation, where it can drive components like conveyor belts, pneumatic valves, and robotic actuators.
