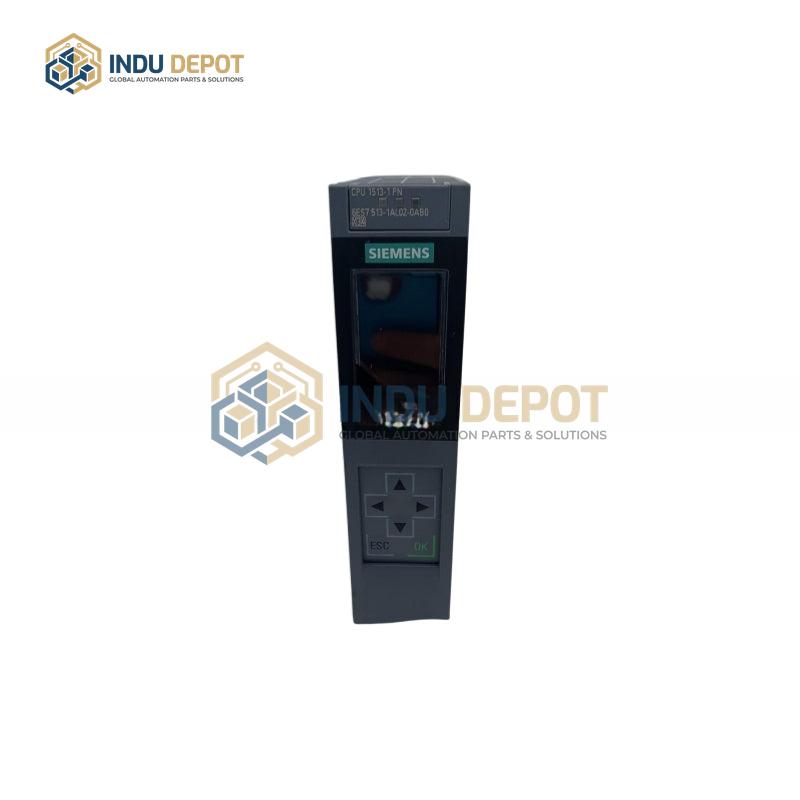

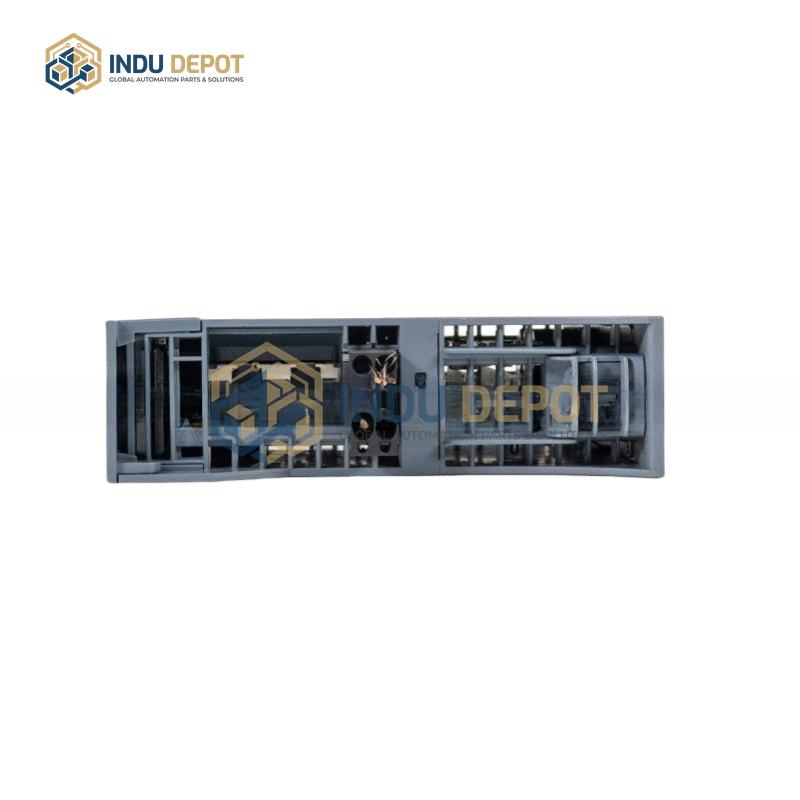

Siemens 6ES7513-1AL02-0AB0 Central Processing Unit

Description

The Siemens 6ES7513-1AL02-0AB0 is a high-performance central processing unit (CPU) belonging to the SIMATIC S7-1500 series, designed specifically for industrial automation control systems. Boasting robust processing capabilities, it delivers enhanced operational efficiency for complex automation tasks. Key technical specifications include 300 KB of program memory and 1.5 MB of data memory, providing ample space for control programs and process data. It features a PROFINET IRT interface with a 2-port switch, enabling reliable, high-speed communication with other industrial devices and networks. The CPU offers exceptional bit performance with a 40 ns rating, supporting bit instruction processing times as low as 1 ns and floating-point instruction processing times as low as 10 ns, depending on task requirements. Its backplane bus speed is 40 times faster than that of S7-400 PLCs, ensuring rapid data transfer between system components. A SIMATIC memory card is required for operation. Some units carry CC certification, and working voltage options include 16V and 24V, with output frequency ratings ranging from 66 to 1000, making it adaptable to diverse industrial control applications.
