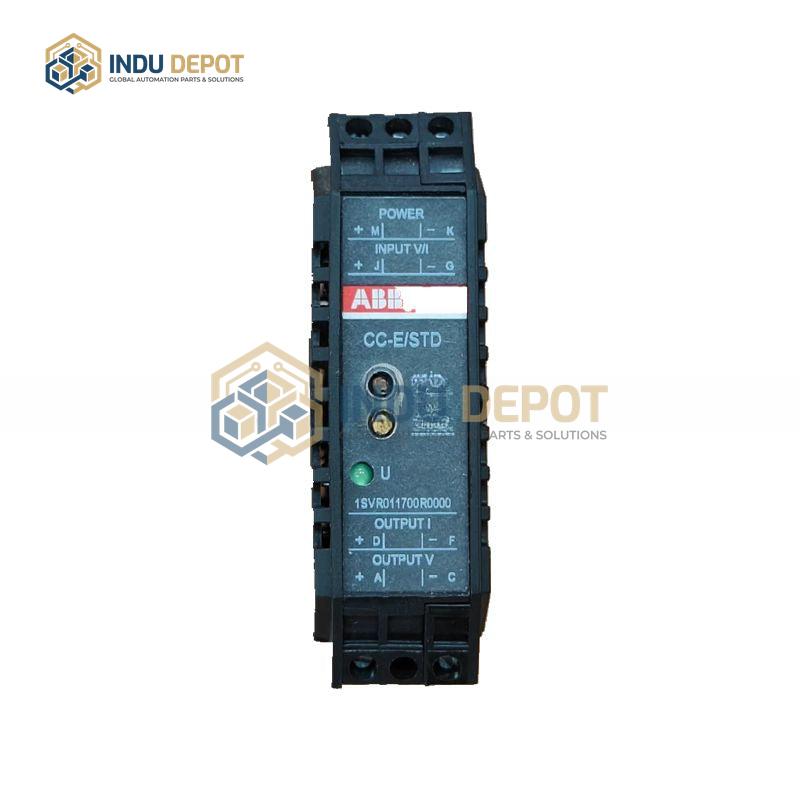

Signal Converter ABB CC-E/STD 1SVR011700R0000 for Control Systems

Description

TheABB CC-E/STD signal converteris a versatileanalog interface moduleengineered for industrial control environments. It supportsfour input signal ranges(0-5 V, 0-10 V, 0-20 mA, 4-20 mA) andfour output ranges(0-5 V, 0-10 V, 0-20 mA, 4-20 mA), making it ideal for adapting and isolatinganalog signalsbetweenfield devicesandcontrol systems. Moreover, its3-way electrical isolationensures safe and interference-free operation by separatinginput,output, andpower supply circuits. ThisDIN rail-mounted moduleoperates on a24 VDC supplyand featuresDIP switchesforsignal range selectionandfront-mounted potentiometersforgainandoffset adjustment. In addition, agreen LEDindicatesactive power supply, simplifying diagnostics and commissioning. TheCC-E/STDis widely used inprocess control,building automation, andenergy management systemswheresignal integrityandflexibilityare critical.
