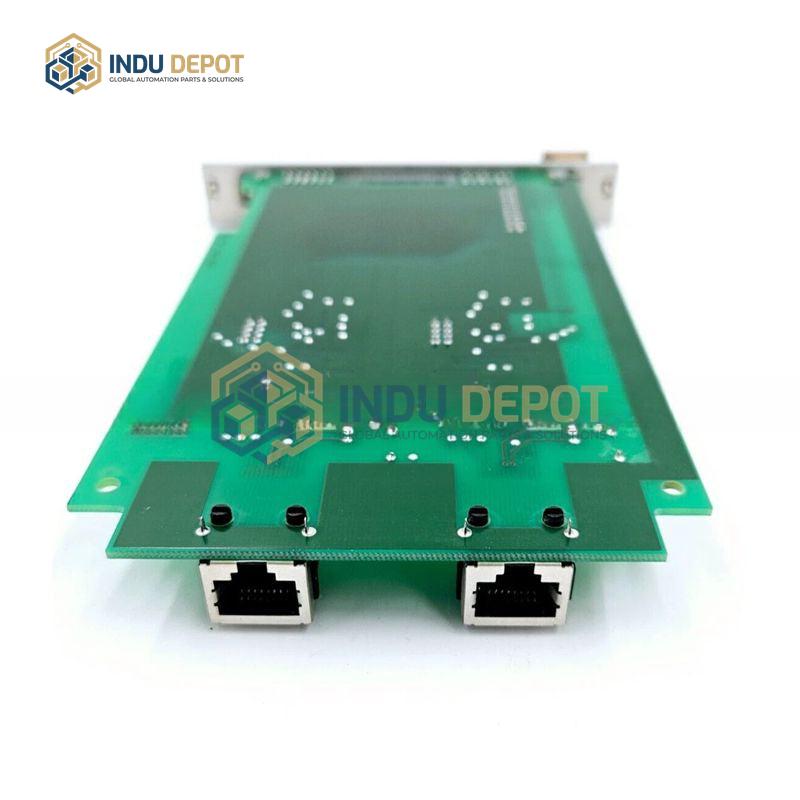

Single Board GE Industrial Automation Module D20EME
Description
GE D20EME Single Board Industrial Automation Module is an expansion communication module for the GE D20 series Remote Terminal Unit (RTU), designed for monitoring and controlling digital signals in industrial automation and control systems. It enhances communication port and protocol capabilities to enable seamless data exchange between field devices and backend systems.
| Specification | Value |
|---|---|
| Power Supply | 24V DC standard; some models support 10V DC to 60V DC; powered by D20 host for base models |
| Operating Temperature | -40 to 70 degrees Celsius; some models support -20 to 60 degrees Celsius |
| Protection Rating | IP20 or IP65, depending on model |
| Dimensions | 120mm x 80mm x 30mm standard; some models 120mm x 100mm x 30mm |
| Weight | Approximately 0.3 kg; some models up to 0.5 kg or 1.5 kg |
| Communication Protocols | Modbus RTU, Modbus TCP/IP, RS-232, RS-485, IEC 61850, DNP3 |
| Communication Interfaces | Ethernet (RJ45), RS-232, RS-485 |
| I/O Channels | Multiple digital input/output channels; some models include analog input/output channels (e.g., 8 digital inputs, 4 digital outputs, 2 analog outputs) |
Key Features:
- Advanced chip and packaging technology for high reliability in harsh industrial environments
- Supports multiple standard industrial protocols for cross-vendor device compatibility
- Modular design for easy rack slot installation and seamless integration with GE D20 RTU systems
- Built-in storage module for data logging and historical analysis
- Supports remote configuration, monitoring, and management for simplified maintenance
- Expandable I/O capabilities to add specialized functions like temperature or flow control
Applications:
- Power system automation: Substation RTU to upper-level dispatch system communication
- Oil and gas pipeline: Data transmission between field RTUs and remote control centers
- Industrial automation: Production line control, equipment monitoring, and process control
- Water treatment plants: Multi-device communication integration and centralized remote monitoring
- Petrochemical and metallurgy industries: Complex production process monitoring and control
- Building management: Integration into building automation systems for centralized control
- Environmental monitoring: Data collection and analysis for air quality, temperature, and humidity
Related Models:
- GE D20EME 0526-21170-1
- GE D20 Series RTU Core Modules
- GE D20 Digital I/O Expansion Modules
- GE D20 Analog I/O Expansion Modules
