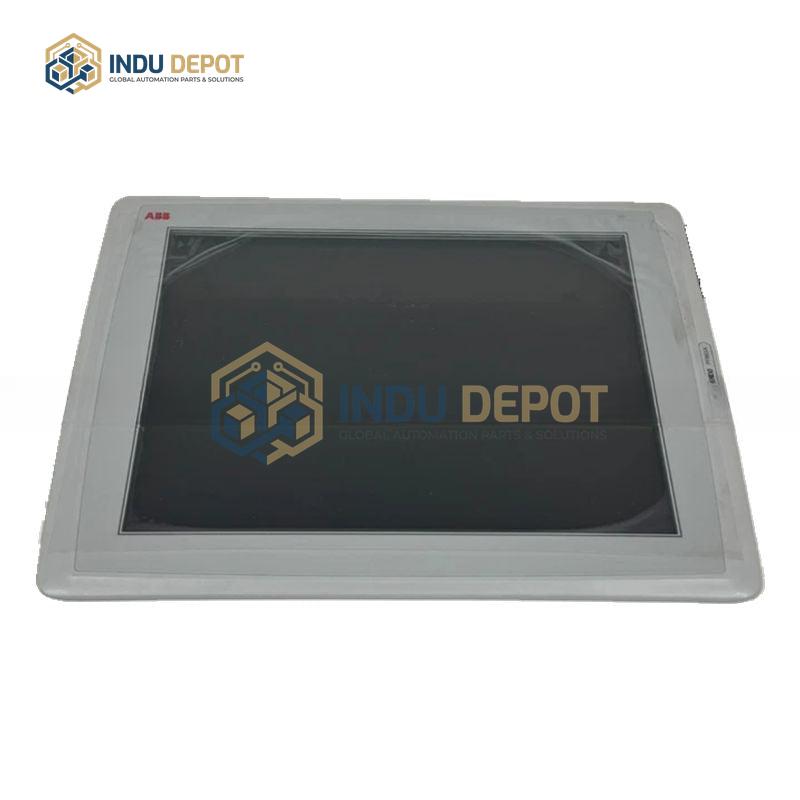

Touch Panel ABB PP865 3BSE042236R2 HMI for Control Applications
Description
ABB PP865 3BSE042236R2 HMI Touch Panel is a high-performance industrial human-machine interface designed for control applications, featuring rugged construction, multi-protocol support, and intuitive operation for use in harsh and complex industrial environments.
| Specification | Value |
|---|---|
| Power Input | 24V DC |
| Operating Temperature | -40 to 85 degrees Celsius |
| Storage Temperature | -40 to 85 degrees Celsius |
| Protection Rating | IP65/66 |
| Display Size | 7 inches or 12.1 inches |
| Resolution | 800 x 480 pixels |
| Power Consumption | 8W to 15W |
| Supported Interfaces | Ethernet/IP, Modbus, Profibus DP |
| Installation Type | Wall-mounted or DIN rail-mounted |
Key Features:
- High-resolution TFT LCD capacitive touchscreen for clear graphic and parameter display
- Industrial-grade design with resistance to shock, corrosion, and electromagnetic interference
- Multi-language support and intuitive user interface for easy operation
- Supports up to 128 I/O points for flexible system expansion
- Powerful multi-tasking processor and multi-protocol compatibility for seamless system integration
Applications:
- Industrial automation for production line and equipment control
- Energy management for power grid and equipment monitoring
- Transportation automation for rail transit signal system control
- Mechanical manufacturing for machine tool and robot operation
- Smart home for appliance, lighting, and security system control
Related Models:
- ABB PP835A 3BSE042234R2
- ABB PP845A 3BSE042235R2
- ABB PP825A 3BSE042240R3
