Transformer Protection Terminal ABB RET521 1MRK001530-AE
Description

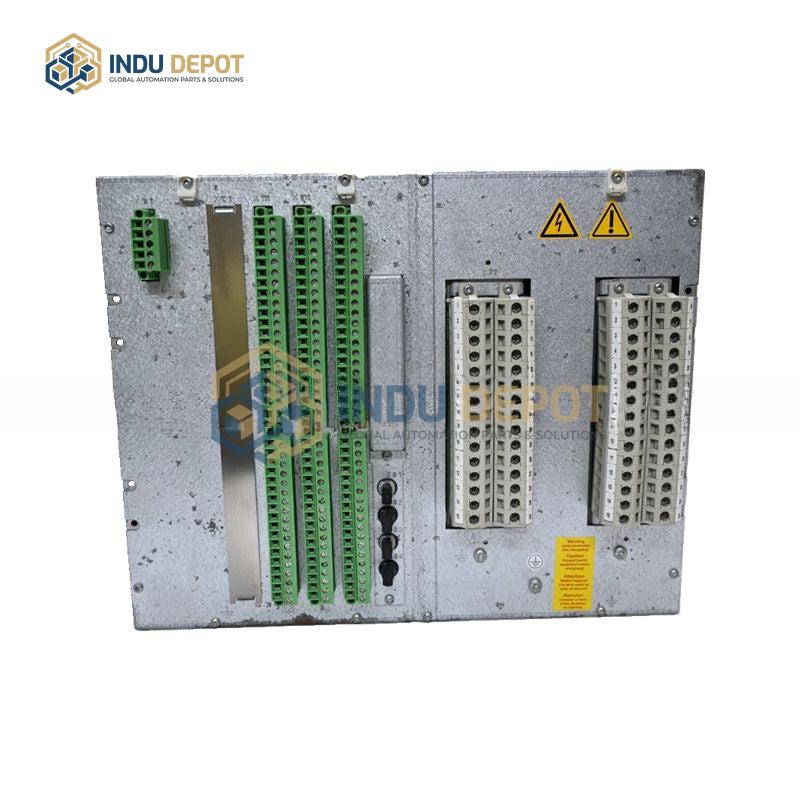

ABB RET521 1MRK001530-AE Transformer Protection Terminal is a microprocessor-based industrial automation device designed to provide specialized protection for power transformers, including overexcitation protection functionality.
| Specification | Value |
|---|---|
| Product Type | Transformer Protection Terminal |
| Core Protection Function | Overexcitation protection (V/f ratio monitoring) |
| Protection Timing Modes | Definite time, inverse time |
| Configurable I/O Configurations | 7I + 3U, 2I + 8U, 9I + 1U, dual 7I + 3U, combined 8I+2U & 9I+1U |
| Time Synchronization Support | Built-in clock, external time source integration |
Key Features:
- Supports both definite time and inverse time overexcitation protection based on V/f ratio, matching transformer magnetic flux levels
- User-configurable input/output configurations to adapt to different substation setups
- Built-in human-machine interface (HMI) for local operation, plus support for PC-based software tools and SMS remote control
- Modular hardware structure with analog input, binary input, binary output, and mA input modules
- Multiple setting groups for flexible parameter adjustment and application switching
- Time synchronization functionality to align with substation-wide timing systems
Applications:
- Overexcitation protection for high-voltage power transformers (including 500 kV class units)
- Substation automation systems for power grid infrastructure
- Industrial power distribution networks with large transformers
Related Models:
- ABB RET521 1MRK001530-AF
- ABB RET521 1MRK001530-AG
- ABB RALK-2H (compatible overexcitation protection relay series)
