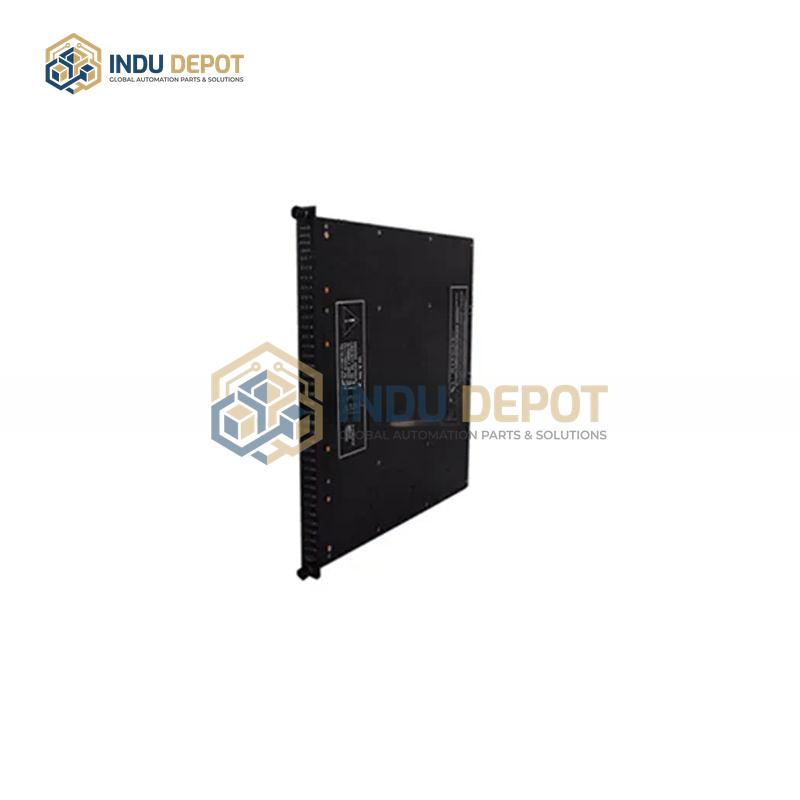

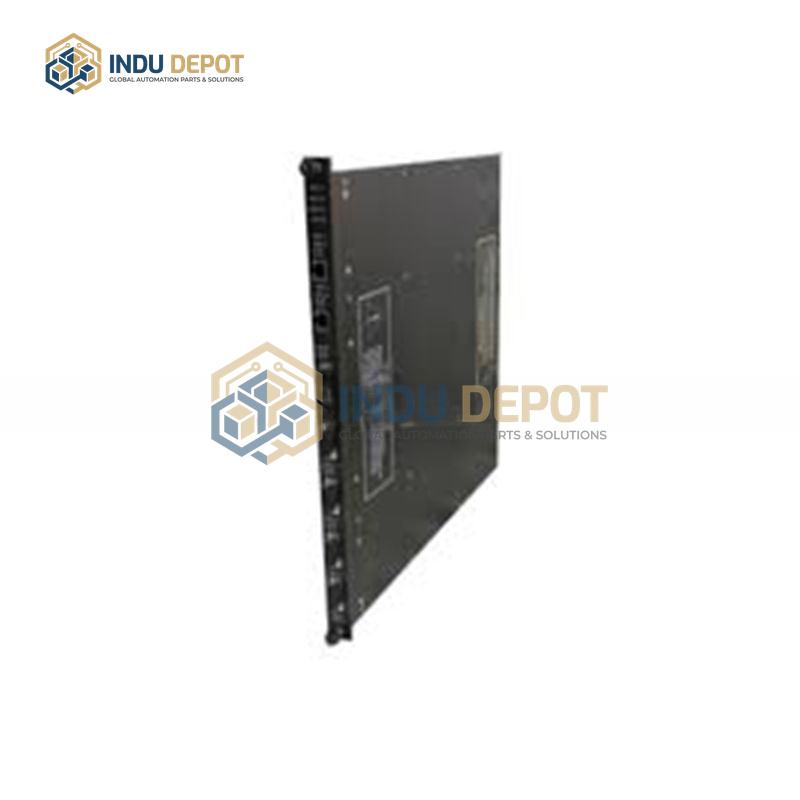

Triconex 3000793-001 Digital Input Module

Description

The Triconex 3000793-001 Digital Input Module is a safety-focused component designed for industrial control systems, engineered to receive digital signals from field devices such as switches, buttons, and relays. As part of the Triconex product line, it leverages the brand’s proven safety and reliability standards, with core features aligned with comparable Triconex digital input modules.

Based on similar Triconex digital input modules like the 3301, the Triconex 3000793-001 likely offers 16 or 32 common-ground digital input channels, with a nominal input voltage of 24 VDC, an operating voltage range of 15–30 VDC, and an absolute maximum input voltage of 33 VDC. It is expected to deliver input delays of less than 10 ms, with input impedance of greater than 30 kΩ without a backplane and 3 kΩ with a backplane.

Key technical features include built-in diagnostic functions such as forced value diagnosis (FVD) and channel fault diagnosis, compliance with IEC 61508 SIL 3 safety standards, and support for the Triple Modular Redundancy (TMR) architecture for enhanced system uptime. It is designed for rack mounting within Triconex control systems, and may offer specialized variants for use in both hazardous and non-hazardous industrial zones, suitable for applications in sectors like oil and gas, power generation, and process manufacturing.
