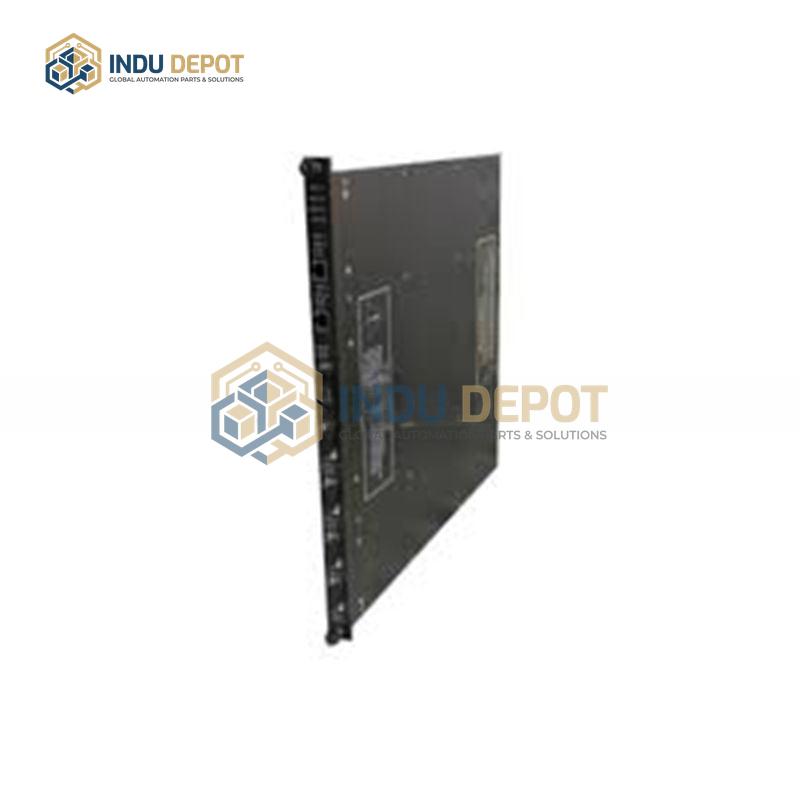

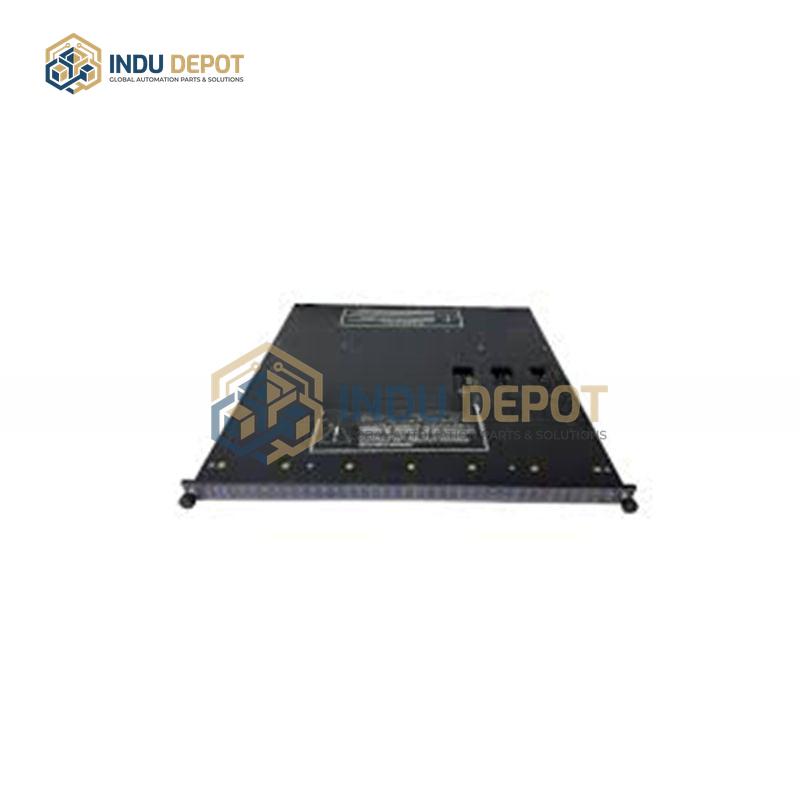

Triconex 3503N Digital Input Module 32-Channel Safety System Component

Description

The Triconex 3503N Digital Input Module is a 32-channel safety system component designed for integration with Triconex Safety Instrumented Systems (SIS), certified to SIL3 (IEC 61508) and TÜV standards for high-integrity critical control applications. Its core function is to collect field digital signals such as switch inputs, limit switches, and emergency stop signals, convert them into system-recognizable signals, and enable real-time monitoring and control of field equipment. Key features include a triple modular redundancy (TMR) architecture, which uses three independent input channels and voting mechanisms to ensure reliable signal transmission; if one channel fails, the remaining two maintain normal operation, eliminating single-point failures and boosting system availability. With 32 high-density digital input channels grouped into sets of 8, it maximizes system integration efficiency. The module supports 24V AC/DC input types, with a recommended input range of 20 to 42.5V DC and a maximum voltage tolerance of 42.5V AC/DC. Additional capabilities include built-in self-diagnostic functions to detect and report faults for simplified maintenance, flexible configuration options to adapt to diverse site requirements, and photoelectric isolation between channels and the system side to enhance anti-interference performance. It is ideal for high-risk industries such as petrochemical, natural gas, and nuclear power, where continuous, safe operation is critical.
