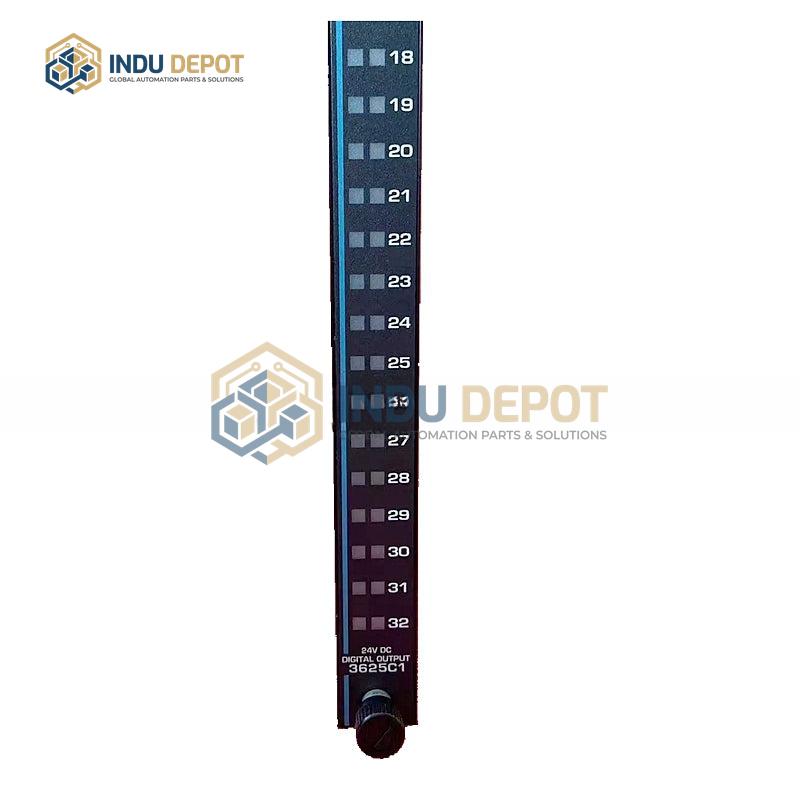

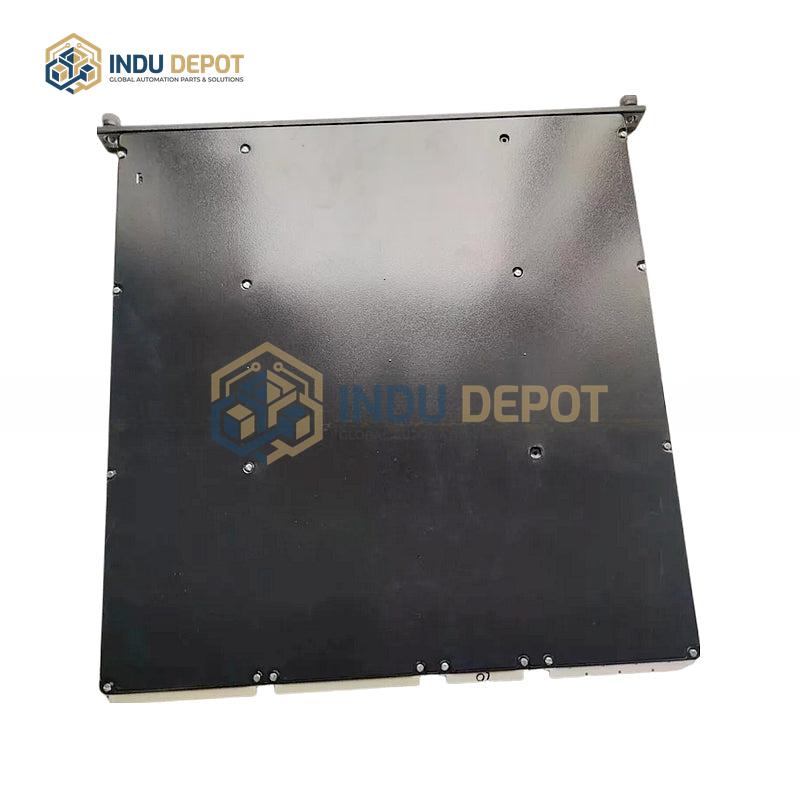

TRICONEX | 3625C1 | 24VDC Digital Output Invensys

Description

The TRICONEX 3625C1 is a 24VDC digital output module designed to convert digital signals into control signals for driving actuators such as motors and valves. Built to meet IEC 61508 standards, it is suitable for high-safety applications requiring SIL3 functional safety ratings, including use in safety instrumented systems (SIS) for safety interlocking and emergency shutdown functions. Key technical specifications include 32 output channels, each with a current capacity of 1.7 A, and an operating voltage of 24VDC for both input and output. The module features a wide operating temperature range of -40 degrees Celsius to 70 degrees Celsius, an IP20 protection rating, and dimensions of 220mm x 100mm x 40mm with a weight of 0.5 kg. Equipped with triple modular redundancy (TMR) architecture, it ensures uninterrupted system operation even if a single module fails. Additional features include high-speed bus communication at 2 megabits per second, an independent power supply design for stable power delivery, and built-in self-diagnostic capabilities to detect and report faults for simplified maintenance. Its modular design enables easy installation, maintenance, and flexible configuration to meet diverse industrial control needs.
