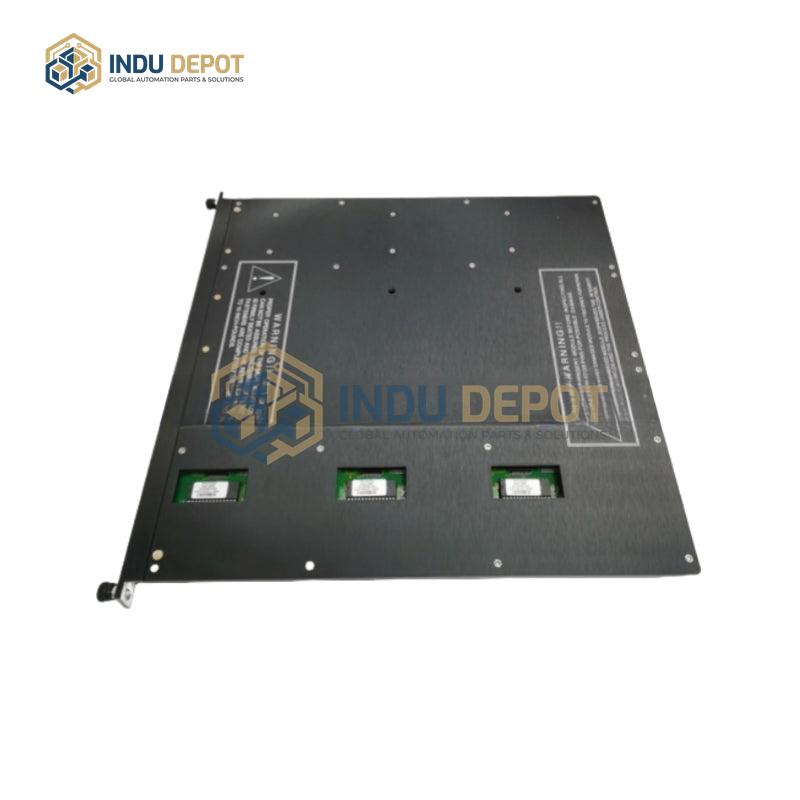

TRICONEX 3706 Thermocouple Analog Input Module

Description

The TRICONEX 3706 Thermocouple Analog Input Module is a dedicated component for the Tricon v10 system, designed to support industrial temperature monitoring and control applications. It features 32 differential, DC-coupled, non-isolated analog input points, enabling simultaneous temperature data capture from multiple sources. The module is compatible with J, K, and T type thermocouples, providing flexibility for diverse temperature measurement requirements across industrial processes.

Equipped with a triplicated I/O bus, it ensures reliable, high-speed data transfer between the input module and main processors at a rate of 375 kilobits per second, supporting consistent and accurate data transmission for critical system operations. Its design includes broad compatibility with various Triconex protocols and applications, allowing seamless integration into existing Tricon v10 system setups to meet customized industrial automation needs.

Core functions include precise conversion of thermocouple signals into processable electrical data, delivering accurate temperature input for control systems to enable real-time monitoring and regulation of temperature-dependent industrial processes. This module is ideal for use in industrial automation environments where multi-point, high-reliability temperature sensing is required.
