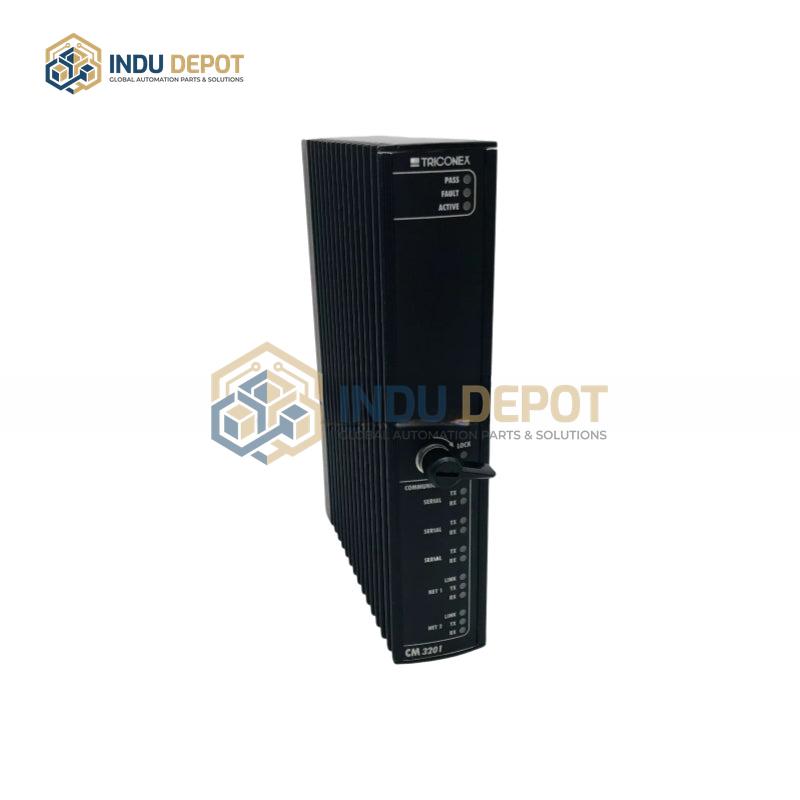

TRICONEX CM3201 Communication Module

Description

The TRICONEX CM3201 Communication Module is a high-performance component designed for integration with Triconex Safety Instrumented Systems (SIS), serving as a critical communication hub for industrial automation and safety-critical applications. Its core function is to enable reliable, real-time data transmission between system components and external devices, ensuring accurate, low-latency data exchange to support continuous system operation.

Key features include multiple communication interfaces such as Ethernet and serial ports, along with support for widely used industrial protocols including Modbus and PROFIBUS, allowing seamless connection to diverse equipment and control systems. It offers high-speed, stable data transfer for control commands, status updates, and operational data, and includes built-in network management tools to simplify configuration and maintenance.

Engineered for extreme reliability, the module incorporates 1+1 redundant design and fault-tolerant mechanisms to maximize system availability. It meets relevant safety standards, making it suitable for safety-critical environments. Technical specifications include communication via fiber or Ethernet with speeds of 10 Mbps or 100 Mbps, 1500 Vrms isolation voltage, a nominal input voltage of 24V DC (with an operating range of 19.2V DC to 30V DC), and an operating temperature range of -40 degrees Celsius to 85 degrees Celsius. Module dimensions vary by configuration, with typical measurements including 176mm x 102mm x 25mm and 160mm x 100mm x 35mm. Its modular design enables easy installation and adaptation to diverse application scenarios.
