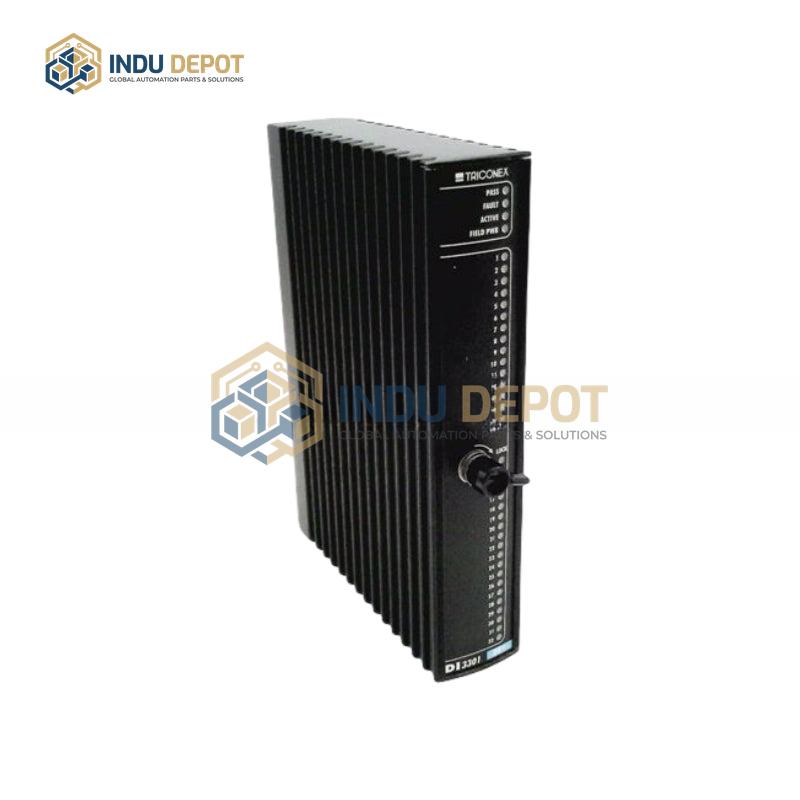

TRICONEX DI3301 Digital Input Module

Description

The TRICONEX DI3301 Digital Input Module is a specialized component designed for Triconex triple modular redundancy (TMR) safety instrumented systems, primarily used to collect field digital switch signals. Key features include high reliability via redundant design and built-in self-diagnostic functions, ensuring continuous system availability; modular design for simplified installation and maintenance; multi-type input support to meet diverse application requirements; and flexible configuration for customized deployment.

Technical specifications include 16 or 32 common ground digital input channels (32 channels is the standard variant), with a nominal input voltage of 24 VDC, and optional variants supporting 115 VAC/VDC. The 24 VDC version has an operating voltage range of 15–30 VDC, an absolute maximum input voltage of 33 VDC, input delay of less than 10 ms (on-to-off or off-to-on), input impedance of over 30 kΩ (without backplane) or 3 kΩ (with backplane), and diagnostic functions including forced value diagnosis (FVD) and channel fault diagnosis. It holds IEC 61508 SIL 3 safety certification, supports TMR architecture, and mounts in Triconex racks.

Specialized versions include DI3301-E for hazardous areas and DI3301-N for non-hazardous areas, with an IP20 protection rating and operating temperature range of -20 degrees Celsius to +60 degrees Celsius. It is ideal for safety systems to monitor status of safety devices like emergency stop buttons and safety gates, as well as process control applications to collect digital signals for variables such as level and pressure.
