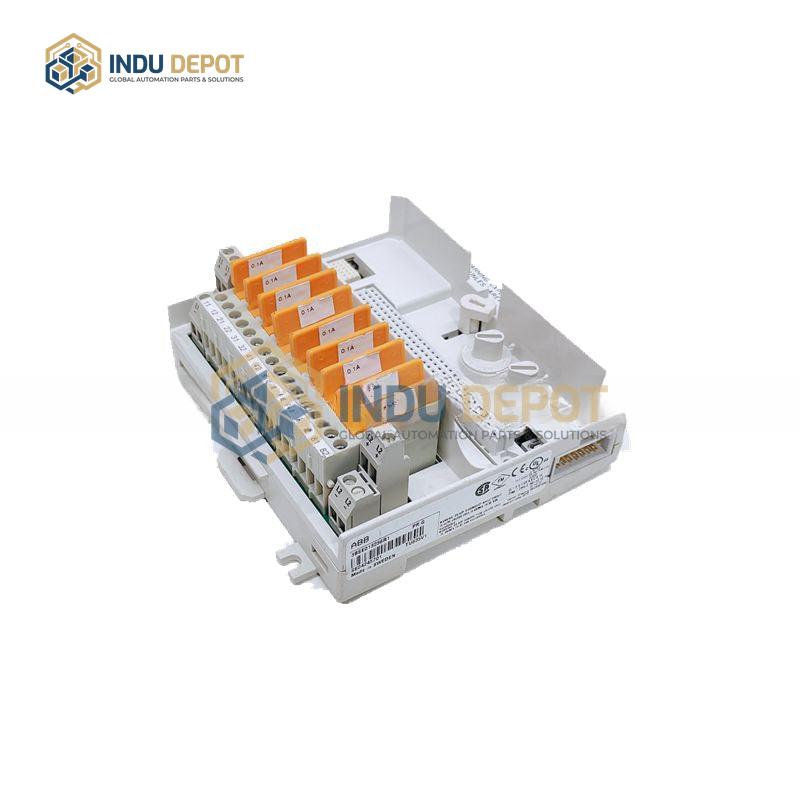

TU835V1 ABB Module Termination Unit for Industrial Automation
Description
TU835V1 (3BSE013236R1) ABB Module Termination Unit is a modular termination unit designed for industrial automation systems, enabling reliable connection and control of field devices with flexible configuration options.
| Specification | Value |
|---|---|
| Product Identification | 3BSE013236R1 |
| Sampling Cycle (4-channel mode) | 100ms |
| Sampling Cycle (2-channel mode) | 50ms |
| Insulation Strength | 1000VAC |
| Power Consumption | 14W |
| Input Points | 32 |
| Processing Speed | 0.72 to 16.3 microseconds |
| Enclosure Dimensions | 107.5x45x16.8mm |
| Protection Class | IP20 |
Key Features:
- Flexible multi-channel control with switchable 4-channel/2-channel modes
- High-speed sampling for real-time data acquisition and control
- Expandable up to 31 modules (124 channels total in 4-channel mode) via extension connectors without extra power wiring
- Supports simultaneous heating and cooling control for complex temperature management
- Independent input channels with 1000VAC insulation for enhanced safety
- USB and RS485 communication support for easy parameter setup and management via DA software
- Hot-swappable design for quick module replacement
Applications:
- Power generation and distribution systems
- Process automation in chemical and petrochemical plants
- Industrial machinery and equipment control
- Building automation and infrastructure systems
Related Models:
- TU843
- TU844
- TU845
- TU846
