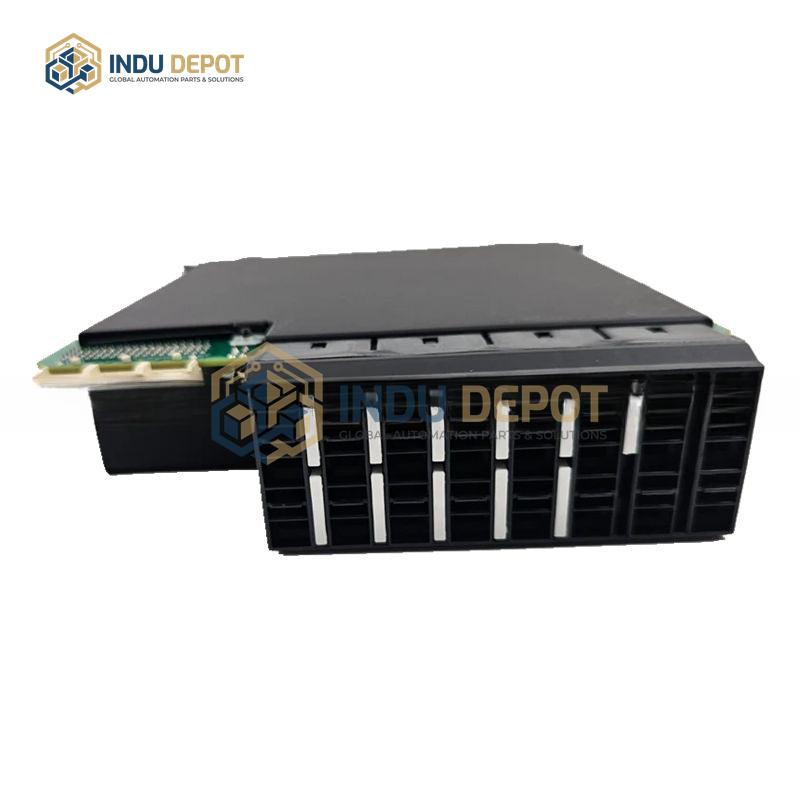

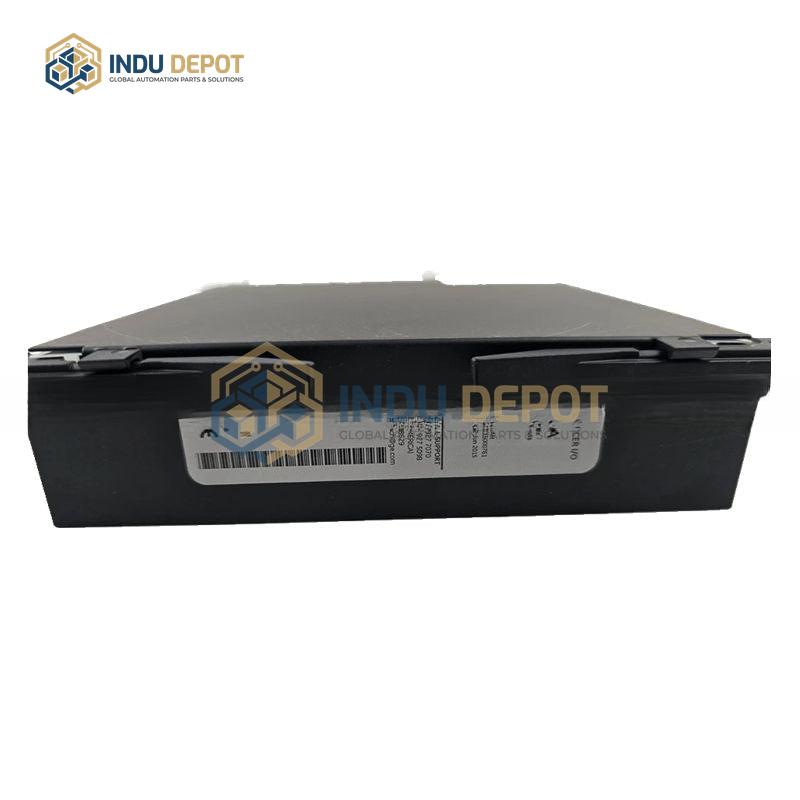

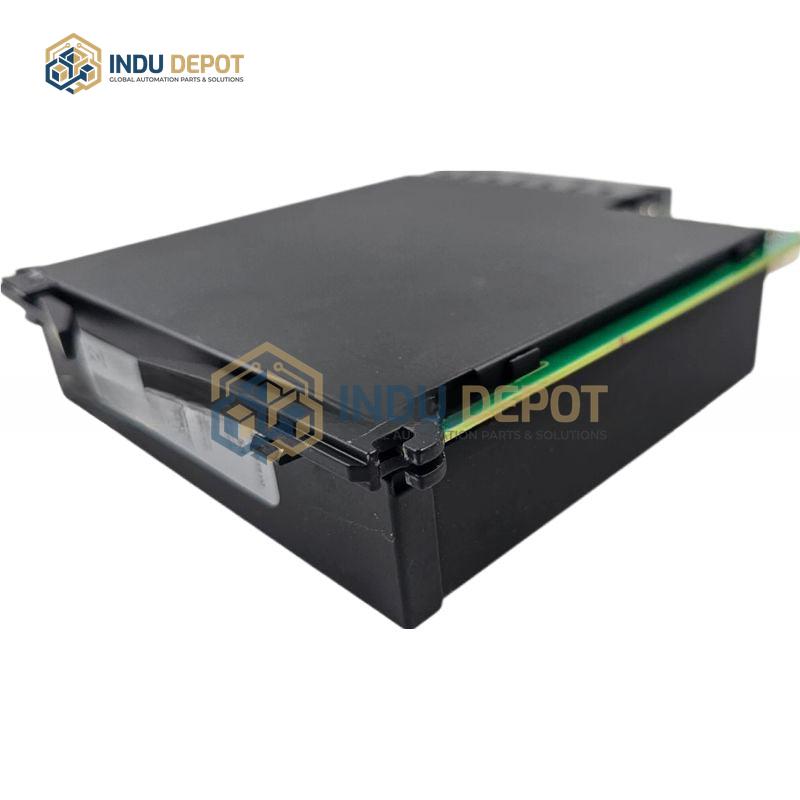

UR 6CV by GE Industrial Digital Input Output Module
Description
UR 6CV (GE Industrial Digital Input Output Module) is a member of GE’s UR series of industrial automation I/O modules, designed to enable reliable signal transmission and device control between programmable logic controllers (PLCs) and industrial equipment. No specific technical details for UR 6CV are available, but related models in the same series offer a range of digital I/O capabilities for diverse industrial applications.
| Specification | UR6EV | UR6CH | UR6AV | UR6DH |
|---|---|---|---|---|
| Input Voltage | 24VDC, 48VDC | 12VDC to 48VDC | 24VDC | 24VDC, 110VAC, 220VDC |
| Output Voltage | 24VDC | 5VDC | 0 to 24VDC | 250VAC/60VDC |
| Max Current | 10A | 10A | 100mA | 12A (resistive load) |
| Operating Temperature | -40 to 85 degrees Celsius | -20 to 60 degrees Celsius | -40 to 85 degrees Celsius | -40 to 70 degrees Celsius |
| I/O Channels | 8 input | 16 digital I/O | 8 input, up to 5 output | 6 sets of normally open contacts |
Key Features (Series Common & Model-Specific):
- Industrial-grade construction for stable operation in harsh environments
- Support for multiple communication protocols including Modbus, Ethernet, OPC, and Profibus
- Modular design for easy installation, maintenance, and system expansion
- UR6EV offers dual power and processor redundancy for high reliability
- UR6AV includes FlexLogic programmable technology and 2000Vrms signal isolation
- UR6DH features fast contact action (≤8ms) and release (≤4ms) times
Applications:
- Industrial production line control and monitoring
- Power generation, transmission, and distribution systems
- Motor and valve control in manufacturing facilities
- Data collection from sensors and field devices
- Human-machine interface (HMI) integration for operator interaction
Related Models:
- UR6EV
- UR6CH
- UR6AV
- UR6DH
