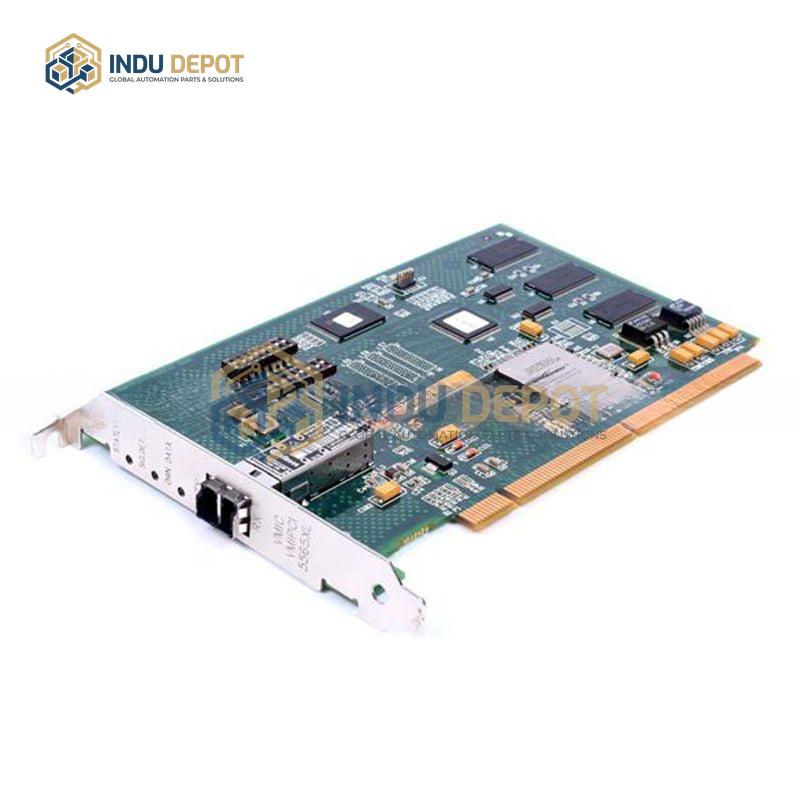

VMICLB-5565 GE High-Performance Reflective Memory Node Card
Description
VMICLB-5565 GE High-Performance Reflective Memory Node Card is a fiber optic reflective memory node card designed for real-time, high-stability data transmission across multiple computing platforms.
| Specification | Value |
|---|---|
| Transmission Rate | 1000Mbps fiber; 43 Mbyte/s to 170 Mbyte/s (dynamic based on packet size) |
| Backplane Bandwidth | 256GB |
| On-Board Memory | 128Mbytes SDRAM with parity check |
| Port Count | Under 8 ports |
| Transmission Distance (Single-Mode) | 10KM |
| Transmission Distance (Multi-Mode) | 300M |
| Max Nodes | 256 |
| Power Supply Voltage | 220V |
| Power Supply Current | 100mA |
| Power Consumption | 100VA |
| Form Factor Dimensions | 300mm |
Key Features:
- OS and processor independent, eliminating software development overhead and cycle time
- Supports full-duplex transmission, ring and star topologies, and seamless upgrade to redundant mode
- Ultra-low data transmission latency, with inter-node data synchronization as fast as 2.1 microseconds under optimal conditions
- Strong anti-interference capability and low management costs
- Enables free data exchange across PCI, PMC, CPCI, and VME platforms
- Auto-adjustable packet size (4 to 64 bytes) and supports DMA read/write with real-time interrupt function
- Hardware-driven data sharing, no application-level software required for cross-node data synchronization
Applications:
- Real-time simulation systems with microsecond-level cycle requirements
- Industrial and embedded computing data acquisition and processing systems
- Multi-node distributed control and data sharing systems
- High-reliability industrial automation and aerospace computing platforms
Related Models:
- VMIC-PCI-5565
- PMC-5565
- VMIVME-5565-110000
- PCIE-5565
- ACC-5595-208
