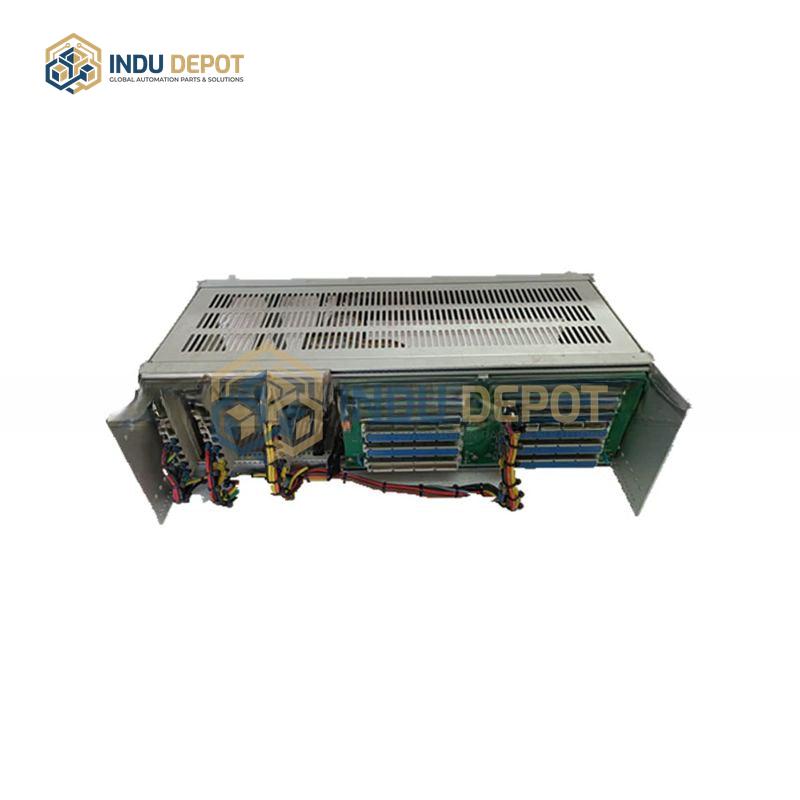

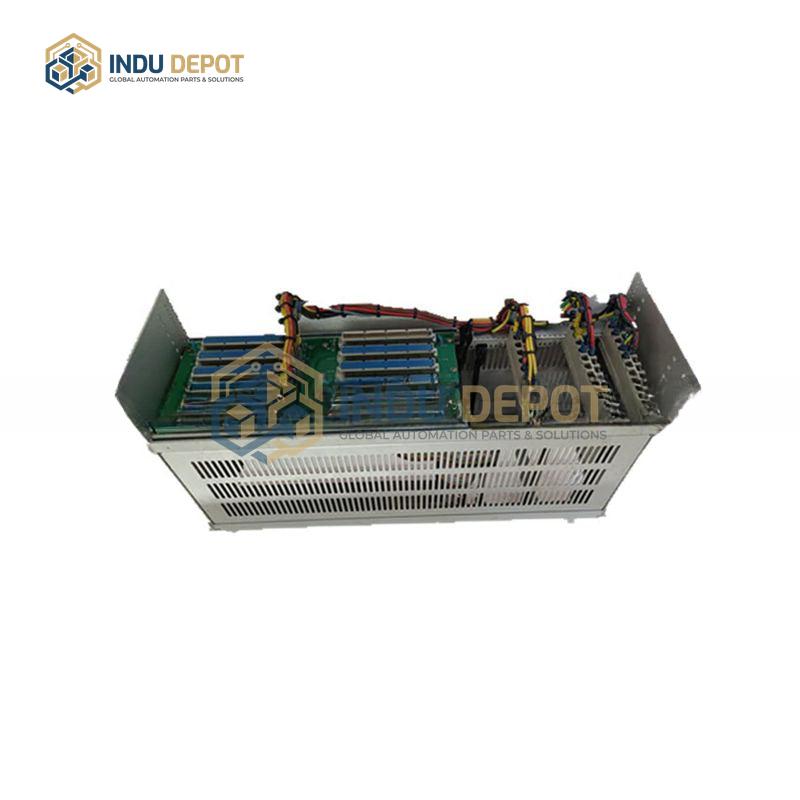

WES32/2-6 by GE Industrial Ground Fault Relay
Description
WES32/2-6 GE Industrial Ground Fault Relay is a specialized protective relay designed for detecting and mitigating ground fault conditions in industrial electrical systems. No direct technical specifications for this exact model were found, so below is relevant technical information from comparable GE ground fault and protective relay products, along with related models.
| Specification | Value |
|---|---|
| Ground Fault Current Setting Range | 0.03 to 10A |
| Ground Fault Operation Time | 0.1 to 10 seconds |
| Supported Voltage Levels | 12.5kV, 22kV, 33kV, 35kV, 66kV |
| Supported Current Ratings | 250A, 500A, 630A, 1000A |
| Communication Protocols | Modbus, RS-485, DNP3, IEC 61850 |
| Operating Temperature Range | 0 to 55 degrees Celsius |
Key Features:
- Built-in zero current transformer (ZCT) eliminates need for external ZCT for ground fault protection
- Supports low frequency (5Hz and above) measurement and protection
- Real-time high-precision processing for fast fault detection and tripping
- Modular design for easy installation and maintenance
- Fault history storage and remote monitoring capabilities
Applications:
- Electrical systems in power substations and distribution networks
- Industrial manufacturing plants and processing facilities
- Large commercial building electrical infrastructure
- Energy production and transmission systems
Related Models:
- 3BZ2-WRAUHL
- GE B30TG3HLHF8NH6TL8NN6TSXXUXXWXX (Multilin B30 Series)
- TGSR12D
- GR5 Ground Fault Relay
- EOCR-i3BZ/iFBZ
