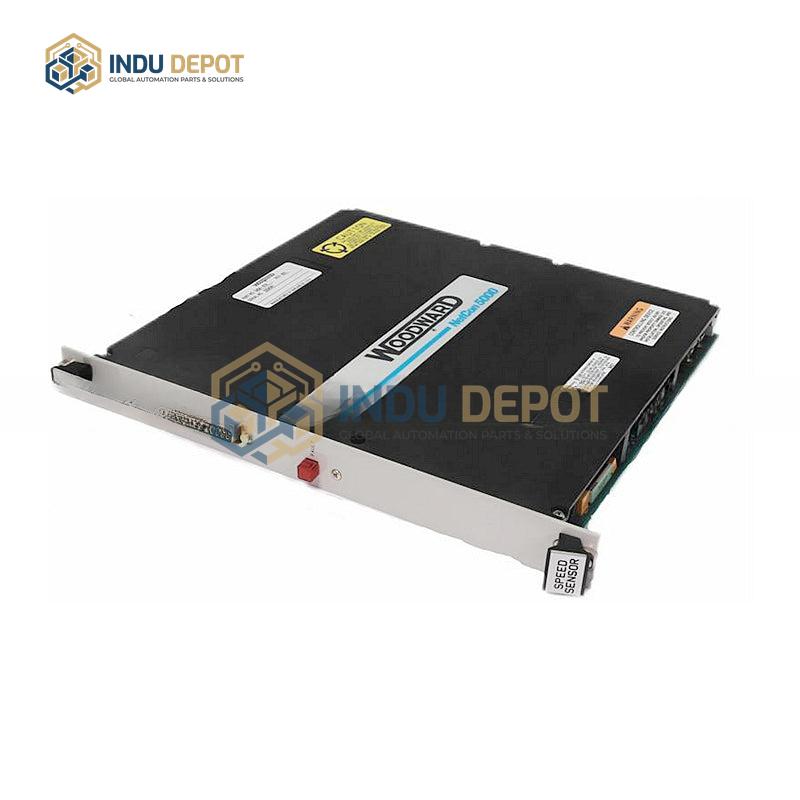

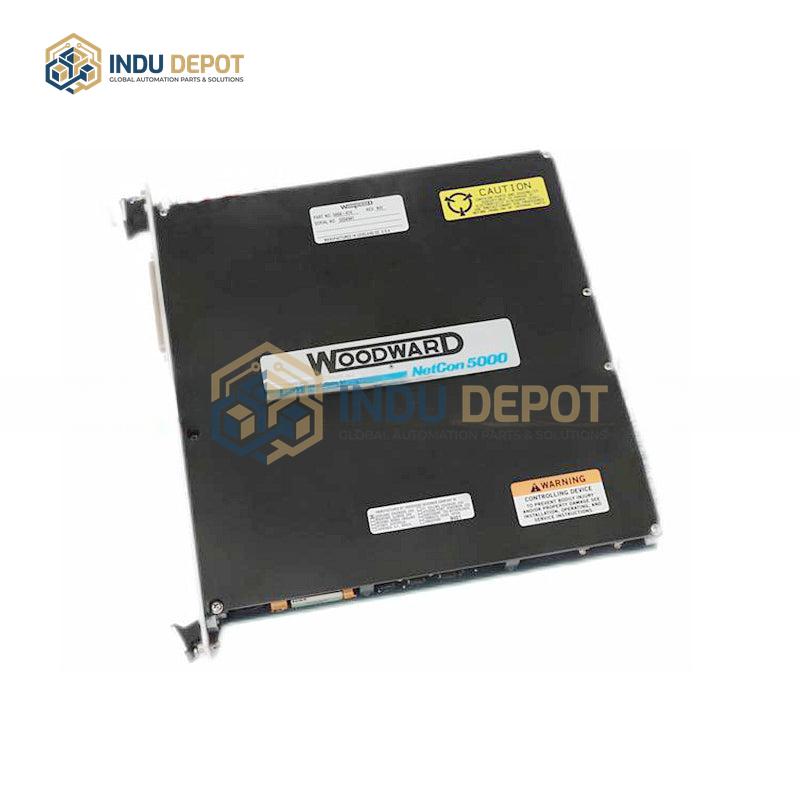

Woodward 5464-414 Digital Speed Sensor Module

Description

The Woodward 5464-414 Digital Speed Sensor Module is a high-performance component engineered for industrial automation and control systems, with broad applications in power generation, manufacturing, oil and gas, and other heavy industries. Its core functions include high-speed, precise rotational speed measurement and signal conversion, delivering reliable operation even in harsh field environments. Key technical specifications include a 24 V DC power supply with a wide operating range of 10 to 32 V DC, and optional output signals of 0 to 10 V DC or 4 to 20 mA to integrate with diverse control systems. It supports single or multi-channel configurations, with common setups including 1, 2, or 4 channels for flexible multi-point speed monitoring. Built for rugged conditions, the module has an operating temperature range of -40 degrees Celsius to +85 degrees Celsius and an IP65 protection rating, ensuring resistance to dust and water ingress. It features a compact single-slot VME/VME-bus form factor with dimensions of approximately 70 mm x 35 mm x 25 mm, enabling easy integration into existing control cabinets. Additional performance highlights include strong anti-interference capabilities, high measurement accuracy, and stable signal output to support critical equipment speed monitoring and control.
