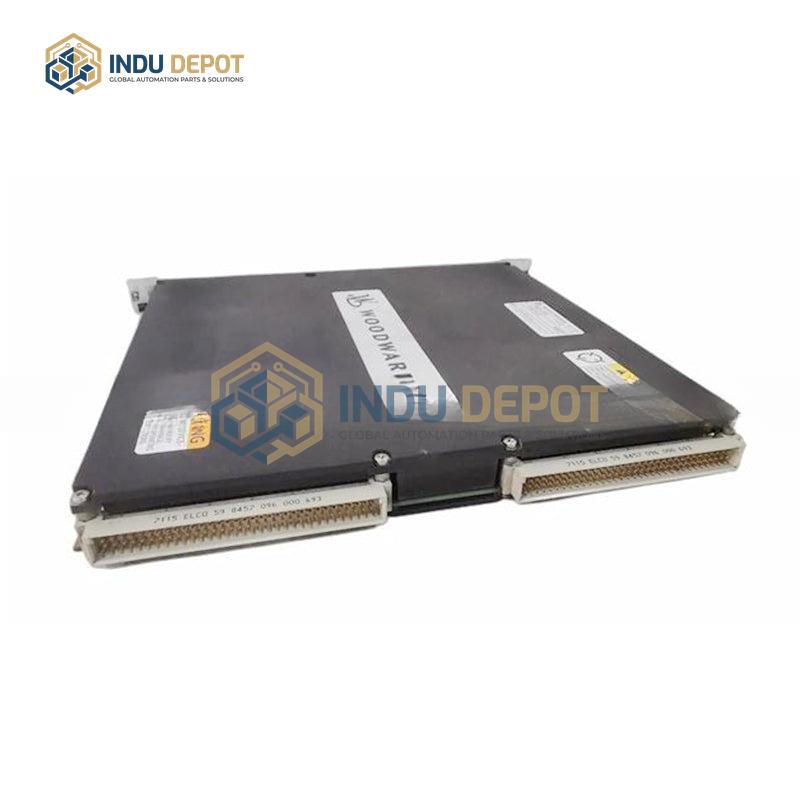

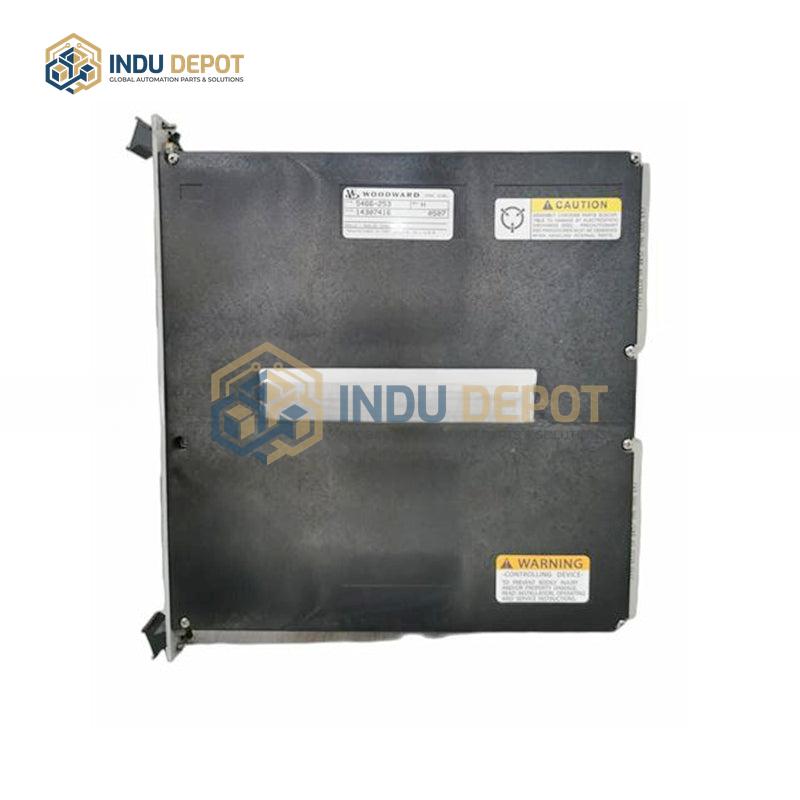

Woodward 5466-253 Analog Combo Module

Description

Woodward 5466-253 Analog Combo Module is a multifunctional control component belonging to the MicroNet Digital Control Series (or 5400 Series). As an analog combo module, it integrates multiple critical industrial control functions to support precise monitoring and regulation in industrial systems. The module has a compact footprint with dimensions of 25×63×32mm (dimensions may vary by version) and weighs approximately 0.2 kg, making it suitable for installation in space-constrained control cabinets.

It operates on a 24V DC power supply, with some versions supporting 220V AC (configuration dependent), and has a typical thermal load of 20W (power consumption may change based on setup). Key functions include analog input for collecting signals from sensors such as temperature, pressure, and flow devices; analog output for sending control signals to actuators like valves and motors; speed input for measuring rotational speed signals; and proportional actuator output for precise proportional control adjustments. The module offers high-precision analog measurement to meet strict industrial control requirements, and it can be configured to adapt to diverse control scenarios. For seamless system integration, it supports multiple fieldbus protocols including Ethernet, Modbus, and Profibus, enabling reliable data exchange with other control equipment and systems.
