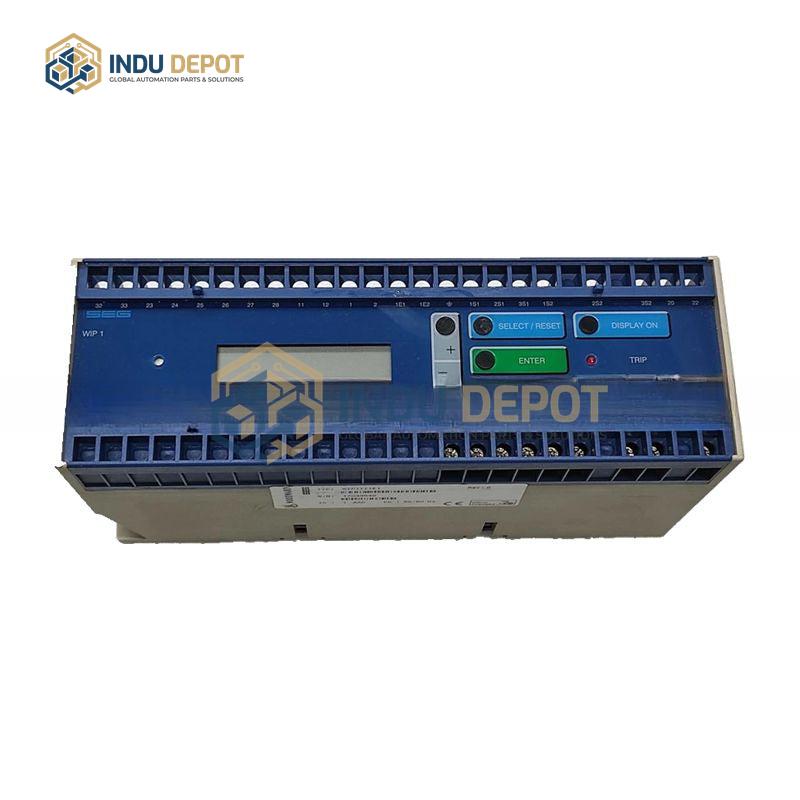

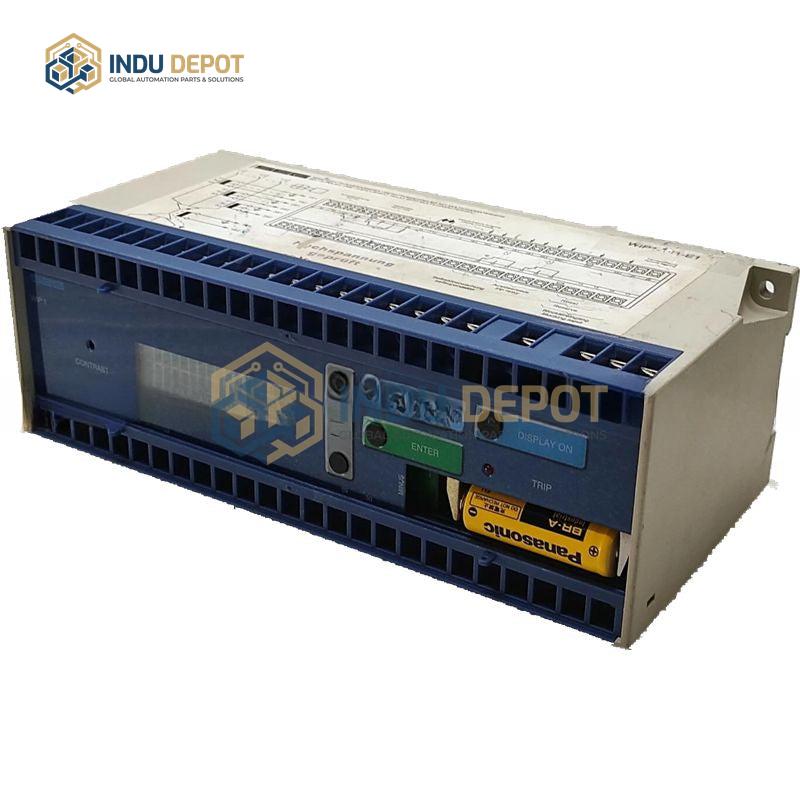

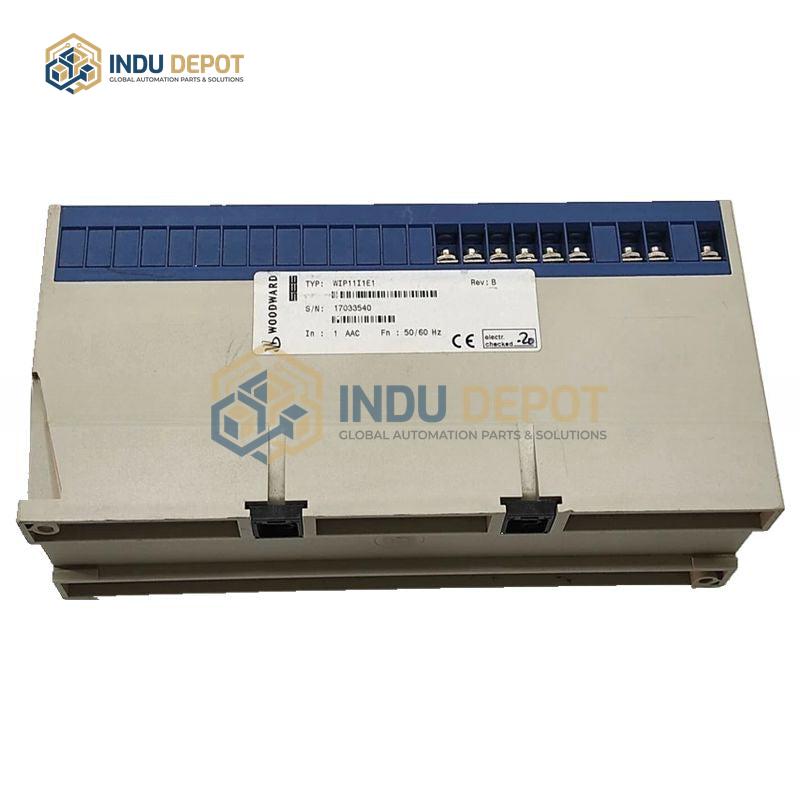

Woodward WIP11-I1 Overcurrent Relay Module

Description

The Woodward WIP11-I1 Overcurrent Relay Module is a specialized protective device designed for overcurrent and earth current monitoring in electrical circuits. As a product from the Woodward brand, this module delivers reliable overcurrent protection by triggering a mechanical response when circuit current exceeds a predefined threshold. Its core operational principle relies on electromagnetic actuation: when excessive current flows through the internal coil, the generated magnetic force pulls an internal iron piece, which drives contact points to disconnect the circuit, effectively preventing equipment and line damage caused by overcurrent conditions. While specific dimensional specifications are not fully detailed, the module is engineered for integration into industrial control systems and power system setups, where it provides critical protection for electrical infrastructure. Suitable for applications requiring robust overcurrent and earth fault detection, the Woodward WIP11-I1 helps maintain operational safety and continuity in environments where electrical overloads or ground faults pose risks to equipment integrity.
