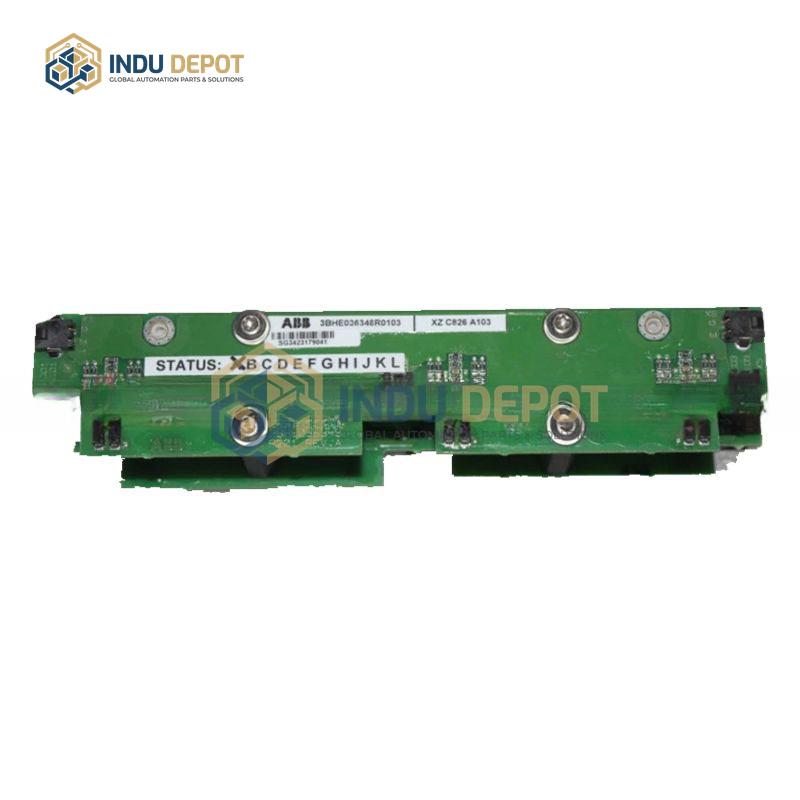

XZC826A103 ABB Circuit Board | 3BHE036348R0103
Description
XZC826A103 3BHE036348R0103 ABB Circuit Board is an industrial signal conversion and control module, part of ABB’s XZC826 series, designed for harsh industrial environments. Based on the closely related XZC826A102 model, it delivers high-precision signal processing and reliable control functionality for industrial automation systems.
| Specification | Value |
|---|---|
| Operating Temperature Range | -20 to 60 degrees Celsius |
| Storage Temperature Range | -40 to 85 degrees Celsius |
| Relative Humidity | 5% to 95% (no condensation) |
| Protection Rating | IP20 (panel) |
| Mounting Type | 35 mm DIN rail |
| Dimensions | 110 mm × 80 mm × 65 mm |
| Weight | Approximately 0.3 kg |
| Conversion Accuracy | ±0.1% FS |
Key Features:
- High-precision signal conversion with nonlinear error ≤ 0.05%
- Strong anti-interference performance with multi-stage filtering and photoelectric isolation, meeting industrial EMC standards
- Wide signal compatibility, supporting connection with various sensor and actuator types
- Compact, DIN rail-mounted design for easy on-site installation and maintenance
- Integrated logic processing and signal transmission capabilities for multi-task parallel operation
Applications:
- Process control systems for temperature, pressure, and flow monitoring
- Industrial automation field signal bridging between PLC/DCS and field instruments
- Energy management and power distribution monitoring systems
- Mechanical manufacturing and robot control loops
Related Models:
- XZC826A102 3BHE036348R0102
- 3BHE023784R1023 ABB Power Control Processor Board
- 3BHE003604R0102 ABB Input/Output Module
