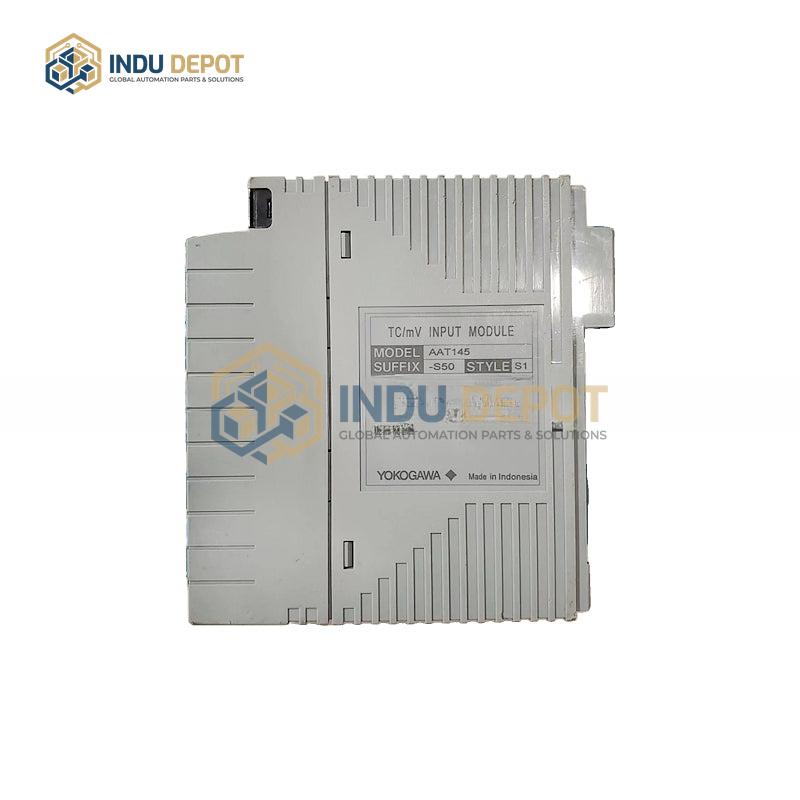

YOKOGAWA AAT145-S50 TC/MV Input Module

Description

The YOKOGAWA AAT145-S50 TC/MV Input Module is a specialized analog input component designed for industrial automation systems. As part of the AAT145 input module series, it is categorized as a TC/mV (thermocouple/millivolt) input type, with the suffix “-S” indicating it is a standard model; related series models include AAT145-S00 and AAT145-S03. Key hardware specifications include 16 isolated channels, ensuring cross-channel interference is minimized for accurate signal capture. The module operates with a single-phase AC200V power supply and has an adapted motor power rating of 0.2, supporting general-purpose industrial applications. Its core function is to collect on-site thermocouple and millivolt-level signals, transmit the data to a CPU for processing, and relay processed information to a host system for monitoring and control. Manufactured to industrial standards, it is compatible with extended operating conditions, including an optional temperature range of -20 degrees Celsius to 70 degrees Celsius when paired with relevant configuration options. This module provides reliable, high-precision signal acquisition for critical industrial processes requiring stable thermocouple and low-voltage input monitoring.
