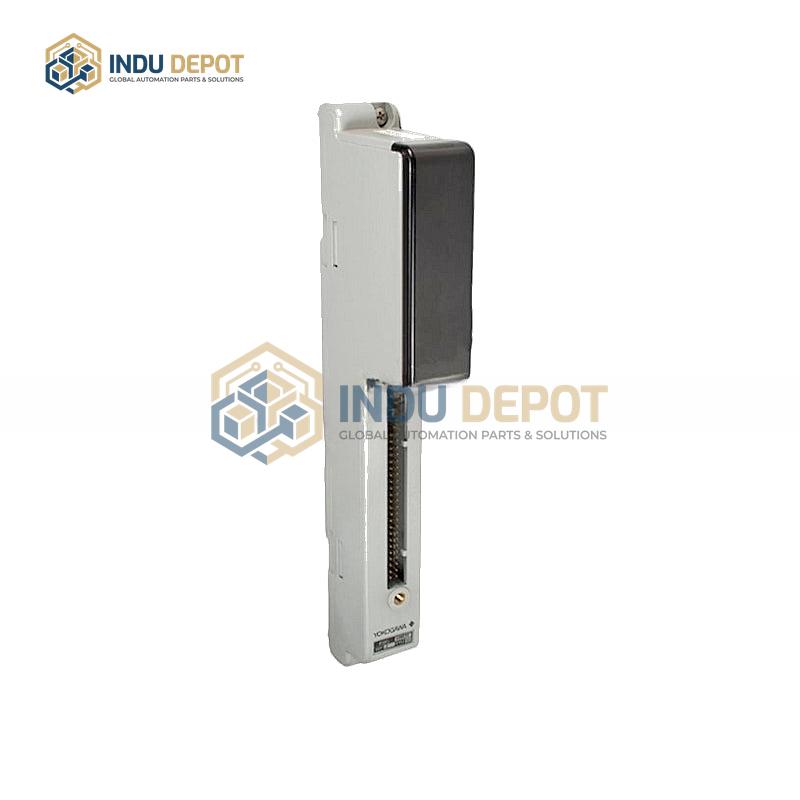

YOKOGAWA ADM52C-2 Digital Output Module

Description

YOKOGAWA ADM52C-2 Digital Output Module is an industrial control module designed for digital signal processing and output applications. It supports two input signal types: contact input and voltage input. For contact input, the OFF signal requires 100kΩ or higher resistance, while the ON signal requires 200Ω or lower resistance. For voltage input, the OFF signal ranges from 4.5 to 25V DC, and the ON signal is ±1V DC with 200Ω or lower resistance. The module has a rated value of 5V DC, 20mA or higher (external contact standard), with a minimum pulse width of 40 milliseconds, maximum pulse cycle of 10 Hz, and maximum current consumption of 600 mA at 5.0V DC. Key functional features include ON/OFF status detection for state inputs, button input detection, isolated button pulse edge signal for function calculations, and a shared negative side for every 16 points. It is installed in an I/O module nest using M4 screws, and can be connected via I/O module nest end cables KS2 or KS3, cables KS9 or KS10, as well as terminal boards TE16 and TE32. This module is suitable for use in distributed control systems (DCS) and other industrial automation applications requiring reliable digital signal handling.
