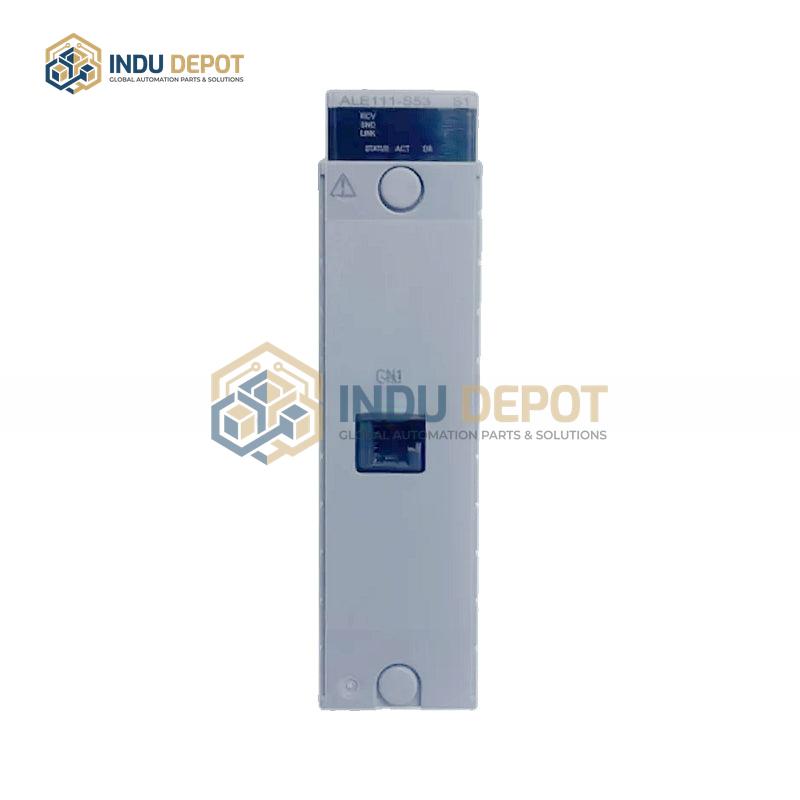

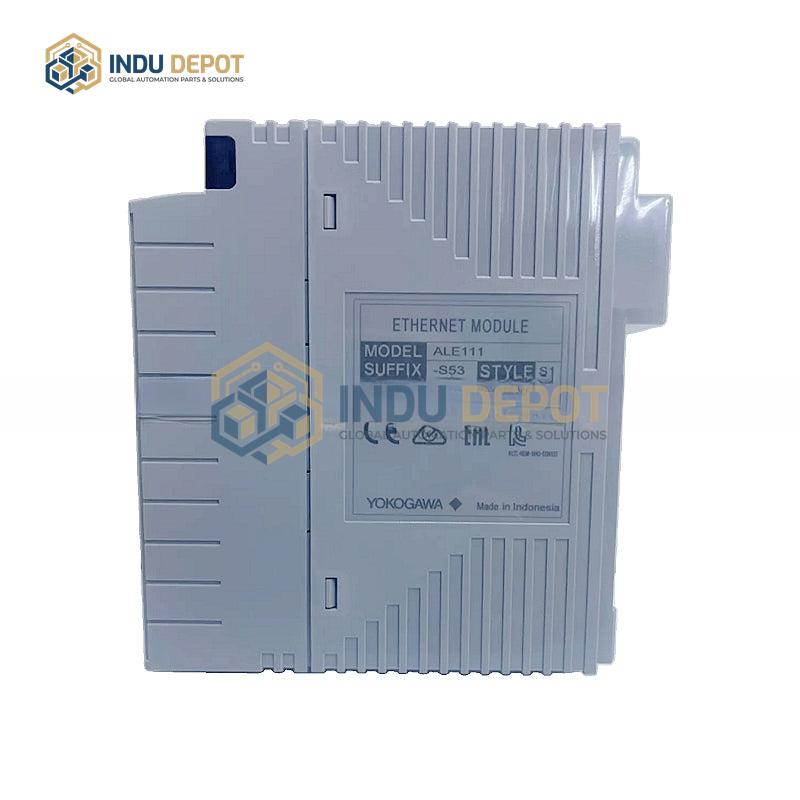

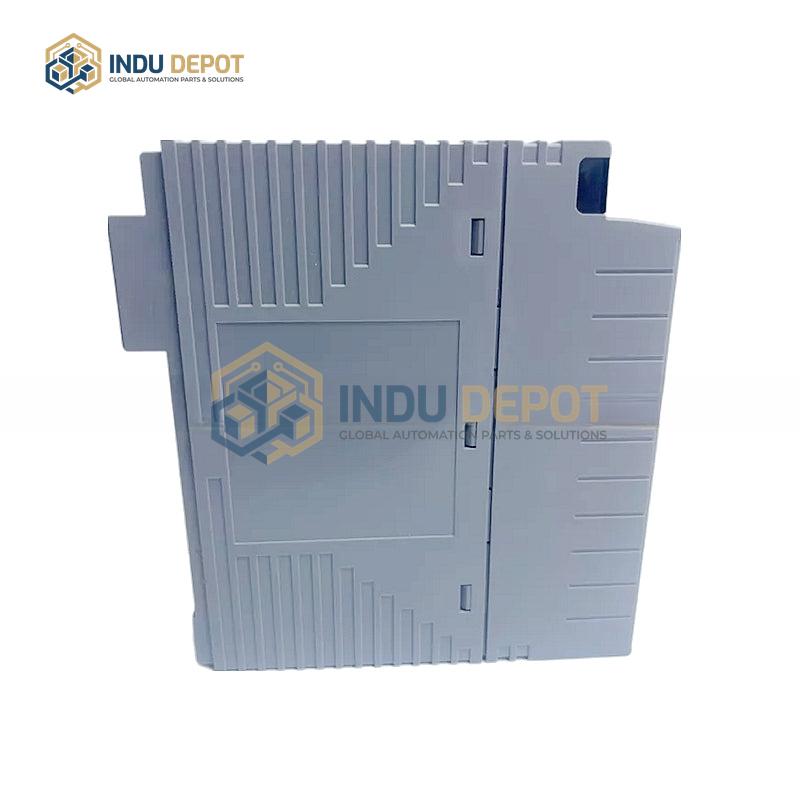

YOKOGAWA ALE111-S53 Ethernet Communication Module

Description

The YOKOGAWA ALE111-S53 Ethernet Communication Module is an industrial automation communication device designed to enable reliable, high-speed data transmission in industrial control systems. As part of Yokogawa’s industrial control product line, it plays a critical role in connecting and integrating components within industrial automation environments. Key technical specifications include support for 10/100Mbps Ethernet transmission speeds, which enables fast data upload and download to boost overall system operational efficiency. The module also offers multi-protocol compatibility, supporting widely used industrial communication standards such as Modbus TCP/IP and EtherNet/IP, ensuring seamless integration with diverse industrial control equipment and systems. For output configuration, the module has specific terminal rules: Pulse Width (PW) outputs require two consecutive terminal numbers, with the first being an odd number. When combining PW and Time Proportion ON/OFF (TP) outputs, consecutive terminal pairs must be dedicated to either PW or TP; individual non-PW terminals can be used as TP or SO (Status Output) terminals. This module is engineered to meet the rigorous connectivity demands of industrial automation applications, providing stable, efficient data communication for complex control systems.
