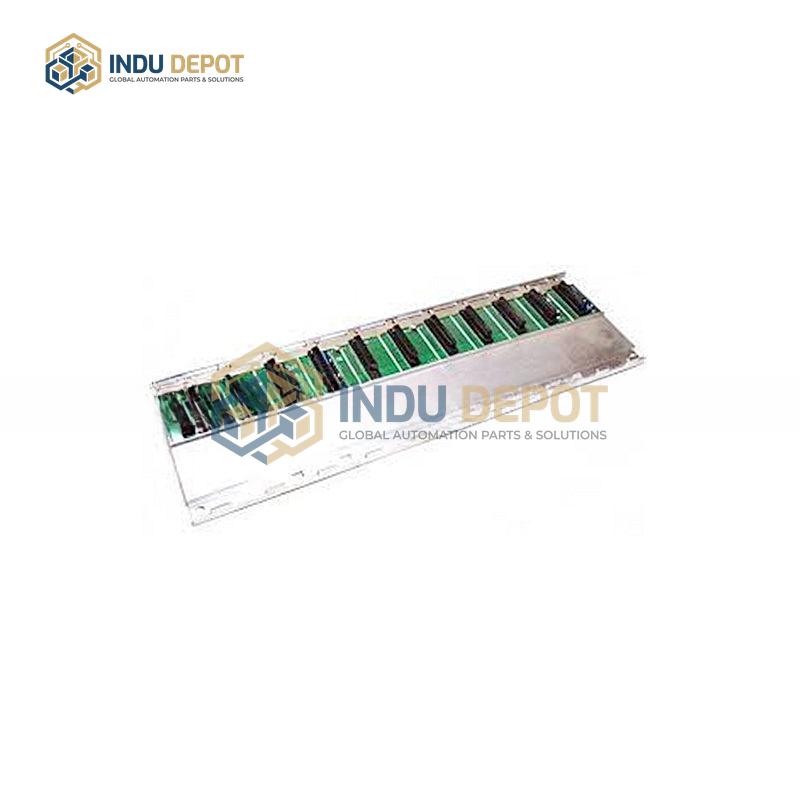

YOKOGAWA F3BU09-0N 9-Slot Base Module

Description

The YOKOGAWA F3BU09-0N 9-Slot Base Module is a rack-mountable industrial control component designed for use in industrial automation systems. As a 9-slot base unit, it provides dedicated slots for integrating I/O and other functional modules, with specific slot configurations for B-bus coupler modules: when connecting a B-bus node unit to an FCU, E1 or E2 B-bus coupler modules must be installed in slots 7 and 8; for single coupler setups, install E1 or E2 in slot 7 and leave slot 8 empty.

Power supply options are defined by suffix codes, supporting multiple input ranges: 1V AC to 12V AC (5/6 Hz), 22V AC to 24V AC (5/6 Hz), and 24V DC. Corresponding power consumption ratings are 2 VA / 12W for 1V-12V AC, 23 VA / 12W for 22V-24V AC, and 5.5A for 24V DC. The unit has a total weight of 1 kg when loaded with 8 I/O modules, and is mounted to a 19-inch rack using M5×4 screws. Its modular design and flexible power support make it suitable for building scalable industrial control systems, enabling organized integration of automation components for reliable industrial process management.
