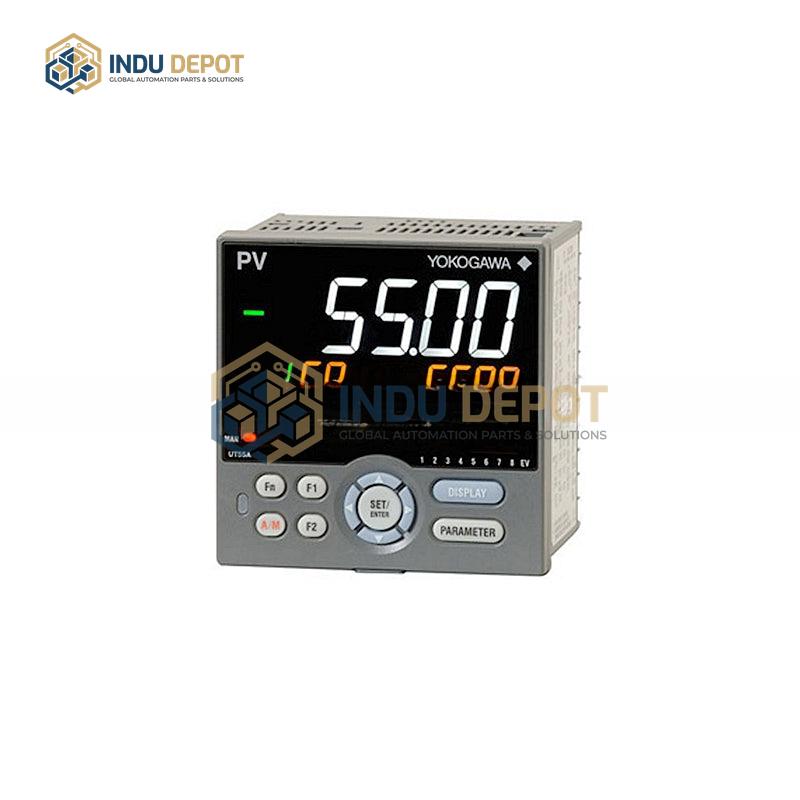

YOKOGAWA UP55A-000-11-00/MD Program Controller

Description

The YOKOGAWA UP55A-000-11-00/MD Program Controller is a versatile program regulator designed for industrial automation control scenarios, supporting diverse program control and regulation requirements. It operates on a 100-240V AC power supply, and comes with a transmit output or 15V DC loop power supply, plus 8 digital input (DI) ports and 8 digital output (DO) ports for flexible signal interaction. The device offers 30 program modes/300 program segments, with a maximum of 99 segments per single program mode, and can be expanded to support up to 99 modes and 600 segments for complex control tasks. It features selectable basic control types including standard, position proportional, and heating/cooling modes, with optional functions such as no additional functions, remote operation with 1 extra analog input and 1 extra DI, RS-485 communication (up to 19.2kbps, 2-wire/4-wire), 10 extra DO ports, or 3 additional auxiliary analog inputs with 2 DIs and 5 DOs removed. Advanced control capabilities include integrated PID control with 5 control calculation/output modes each, and a standard 500-step ladder sequence program. It also supports multiple communication protocols, including RS-485 (Modbus/RTU, inter-instrument communication, coordinated operation, PC-Link) and open networks like PROFIBUS-DP, CC-Link, and DeviceNet, with a compact 65mm depth and user-friendly 14-segment color large LCD display, scrollable parameter names, navigation keys, and user-definable function keys for intuitive operation.
