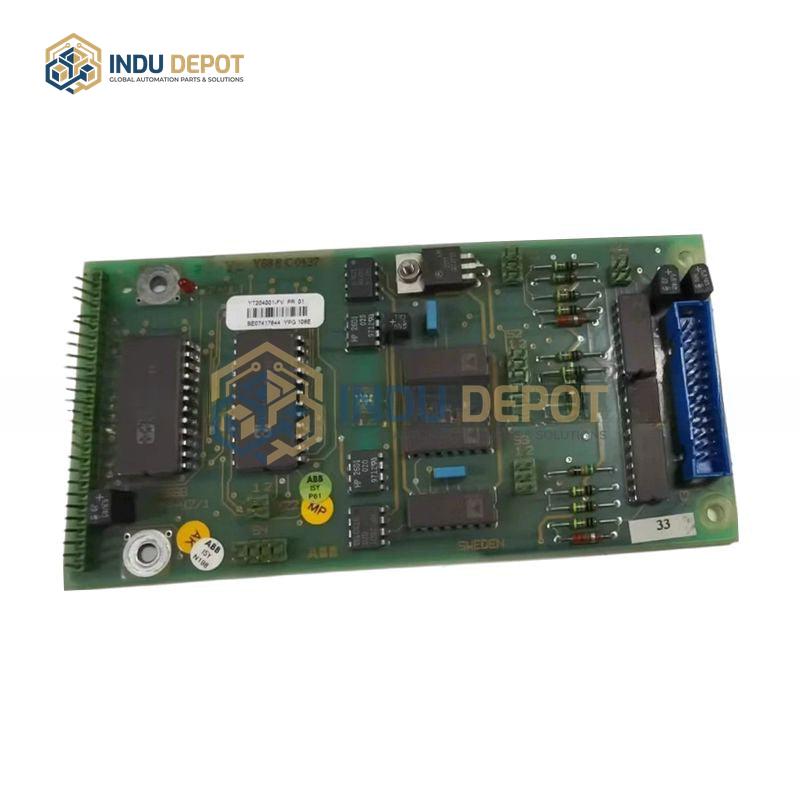

YPG108E ABB Control Board Module
Description
YPG108E ABB Control Board Module is a dedicated control interface designed for use with ABB MFP excitation and speed control cabinets, providing precise regulation and monitoring for rotating electrical equipment.
| Specification | Value |
|---|---|
| Operating Temperature Range | -20 to 70 degrees Celsius |
| Operating Humidity Range | 5% to 95% (no condensation) |
| Power Supply | 24V DC ±10%, ripple ≤5%, current ≥1A |
| Analog Input (AI) | 4-20mA / 0-10V |
| Communication Interfaces | Profibus-DP, Modbus, serial, fiber optic |
| Terminal Torque | 0.5 to 0.8 N·m |
Key Features:
- Supports multiple control modes including voltage closed-loop (AVR), current closed-loop, and speed closed-loop operation
- Integrates digital input/output signals for start/stop, status feedback, and protection alarms
- Built-in self-diagnostic system with visual indicator lights (PWR, RUN, ERR) for quick fault identification
- Configurable via dedicated MFP Tool software or local panel for customized parameter settings
- Complies with strict anti-static and installation safety standards for reliable long-term operation
Applications:
- Excitation control for synchronous generators and motors
- Speed regulation for industrial drive systems
- Integration with ABB MFP200 and MFP300 series control cabinets
Related Models:
- YT204001-FV
- YPK107E
- RMIO-11C
